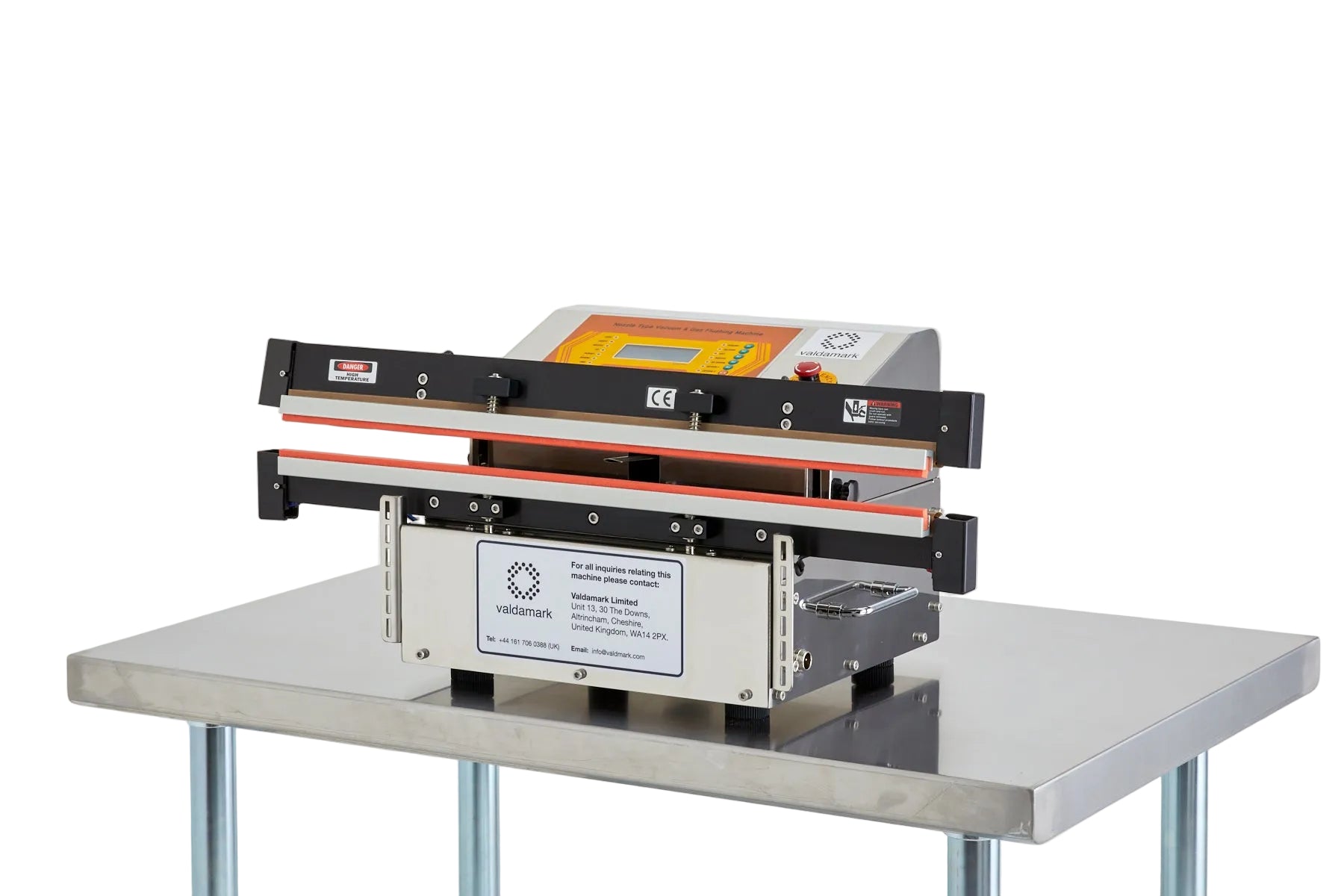

ValVac 600 M Air Vacuum Sealer: Heavy-Duty 600mm Sealer

The ValVac 600 M Air is an industrial-grade, wide-format nozzle vacuum sealer designed for large-scale operations requiring high-volume throughput and expansive sealing capabilities. While its smaller siblings focus on compact precision, the 600 M Air is the "heavy lifter" of the series, featuring a 600 mm sealing bar to accommodate oversized pouches used in bulk food processing, large electronic components, and industrial hardware.

Engineered with a reinforced stainless steel frame, this model is built to withstand the rigors of 24/7 production lines. It utilizes an advanced pneumatic-driven system (as opposed to standard motor drives) to provide the necessary pressure for consistent, airtight seals across its extended length.

Performance & Durability

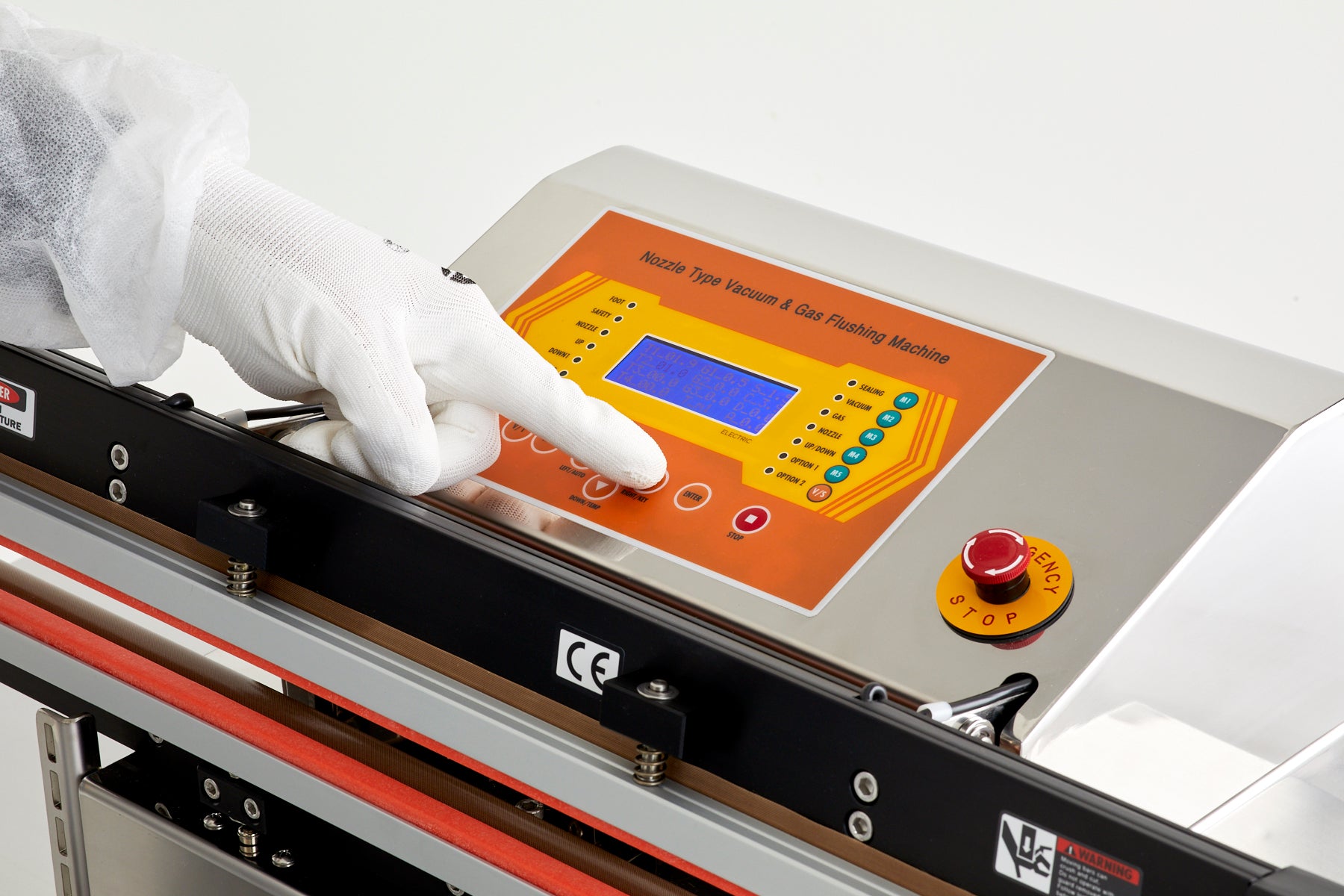

At the heart of the ValVac 600 M Air is the signature MYCOM digital controller. Unlike traditional PLCs, this dedicated processor manages the vacuum, gas, and seal cycles with microsecond accuracy. To support its larger footprint, the unit features an enhanced cooling architecture and an external-mount controller design, ensuring that the internal electronics stay cool even during rapid-fire sealing cycles.

Product Overview

This model is designed for flexibility, allowing operators to switch between simple sealing and complex modified atmosphere packaging (MAP) in seconds.

Extended Sealing Reach: The 600 mm bar allows for the sealing of extra-wide bags or the simultaneous sealing of multiple smaller bags to increase efficiency.
S Mode (Seal Only): High-speed bypass mode for standard poly-bag sealing without vacuum.
V Mode (Vacuum & Seal): A streamlined two-step process for rapid air extraction.
Multi-Stage Programming (M1–M5): Advanced memory slots for sophisticated recipes. This allows for "pulse" vacuuming—up to 4 vacuum stages and 3 gas injections—essential for fragile items that require a specific internal atmosphere.
Precision Vacuum Sensing: Instead of "best-guess" timing, the 600 M Air uses a digital sensor to pull air until a specific kPa target is reached, ensuring uniformity across every batch.

Specifications

Feature	Detail
Model Name	ValVac 600 M Air
Body Material	SUS 304 Stainless Steel (Anticorrosive)
Weight	Approx. 38 kg
Sealing Length	600 mm
Sealing Width	5 mm, 10 mm, or Dual-Heat Options
Vacuum Creation	High-Flow Venturi Ejector or Internal Pump
Electricity	1ph, 110/220V, 50/60Hz
Safety Features	Obstruction Sensor & Auto-Retract Nozzle

Product Specifications (.PDF)

ValVac 600 M Air Information

Frequently Asked Questions

What makes the 600 M Air different from the 350 M model? The primary difference is the scale. The 600 M Air features a significantly wider 600 mm sealing bar and a reinforced chassis to handle the increased pneumatic pressure required for larger packaging formats.

Is this model suitable for cleanroom environments? Yes. Because the "Air" series can be configured with an exhaust piping system, it prevents the release of particles back into the room, making it ideal for semiconductor and medical device packaging.

How does the safety bar work? The machine is equipped with a high-sensitivity digital safety sensor. If the sealing bar encounters any resistance (like a finger or a misaligned product) before it fully closes, the cycle is aborted and the bar immediately returns to the open position.

Can I seal thick gusseted bags? Absolutely. The 600 M Air provides high-pressure sealing and can be ordered with a double-heating configuration (top and bottom bars heated) to penetrate even the thickest industrial laminates or foil liners.

What is the benefit of the MYCOM controller over a standard PLC? The MYCOM controller is a specialized chip designed specifically for vacuum sealing. It offers more stable timing and better integration with the vacuum sensors, resulting in a lower failure rate and more intuitive programming for the operator.
