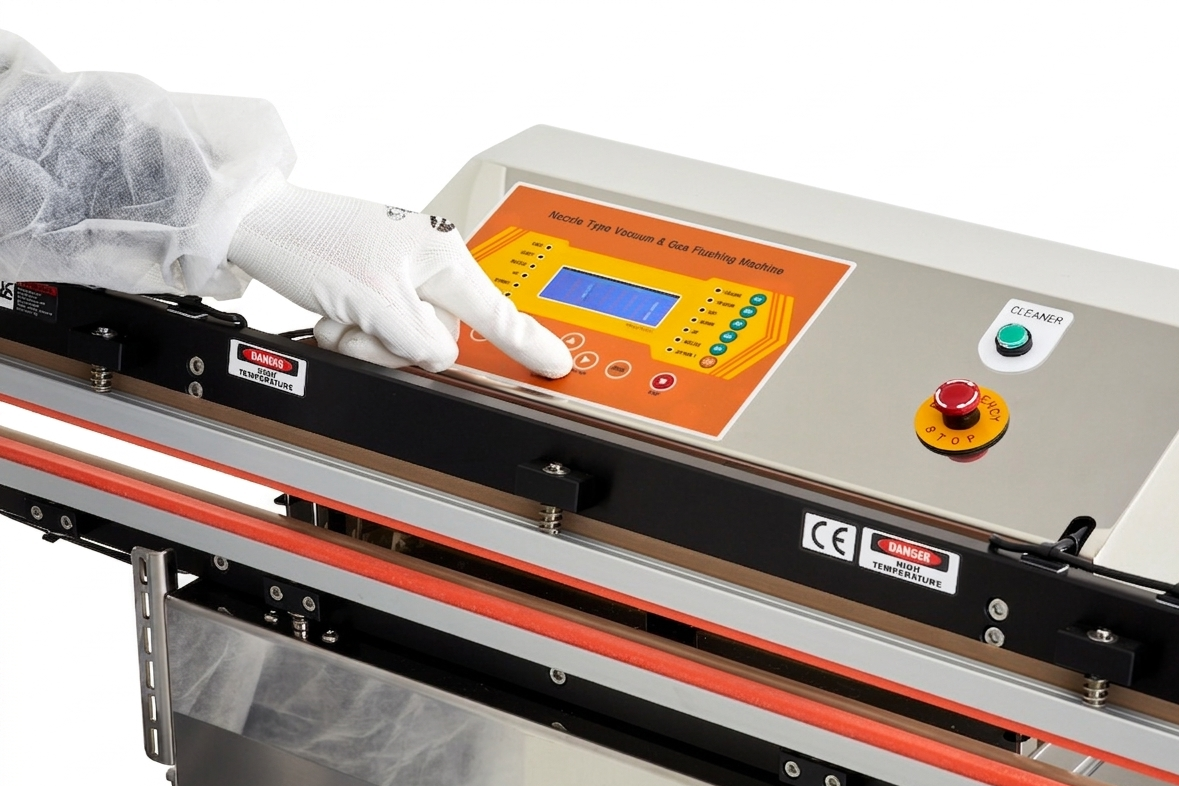

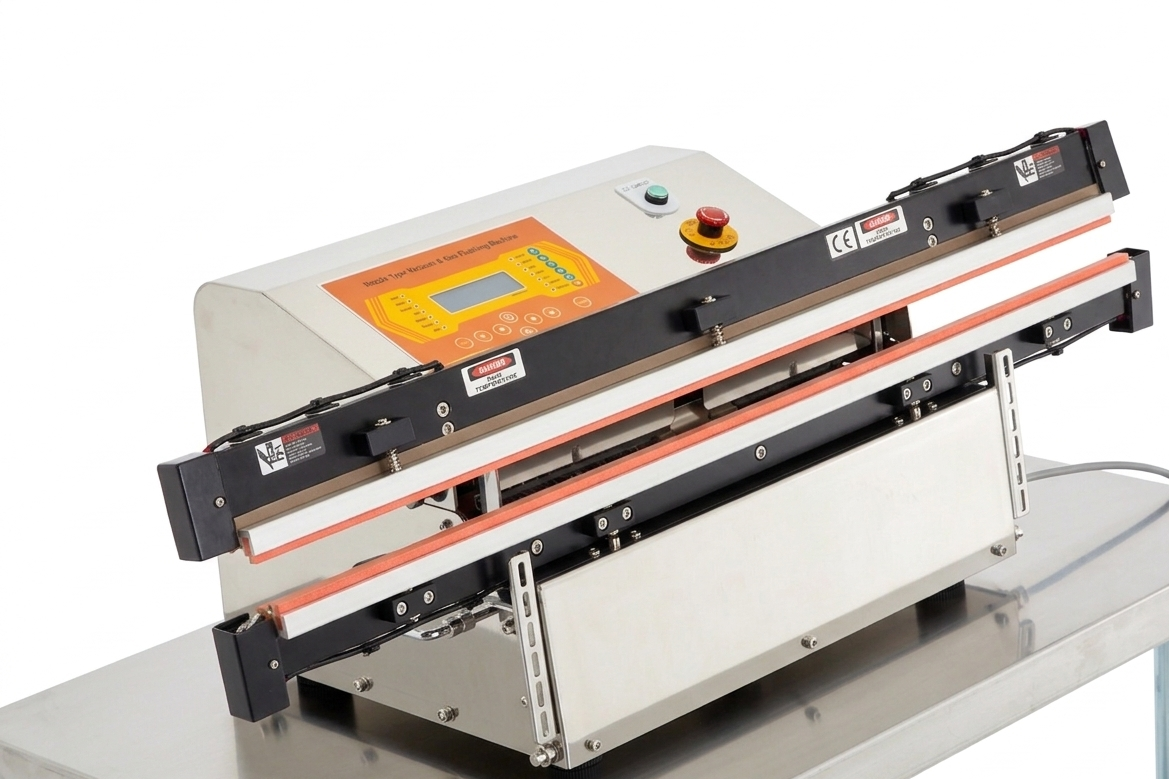

ValVac 600 E Vacuum Sealer - Sealing Length 600mm

The ValVac 600 E is a professional-grade, nozzle-type vacuum and gas flushing sealer designed for high-precision packaging in both industrial and food sectors. Constructed with a stainless steel body, it offers a powerful pneumatic-driven sealing system and an ergonomically slanted design for ease of use.

Sealing length 600mm, sealing width 5mm or 10mm

The ValVac 600 E is a versatile packaging solution designed to protect goods from decomposition, oxidation, and external contaminants. It utilizes a high-accuracy MYCOM controller (superior to standard PLCs) and runs on stable DC 24V for its major electrical components. Its pneumatic operation ensures powerful sealing with low electricity consumption, while the unboxed controller design allows for effective heat radiation, enhancing the machine's durability.

Product Overview

The machine provides multiple operational modes to accommodate various packaging needs:

• S Mode: Dedicated for sealing only.

• V Mode: Performs a vacuum cycle followed by sealing.

• M1–M5 Modes: Customizable modes that allow for up to 4 vacuum cycles and 3 gas flushing cycles in a single sequence.

• Precision Control: Vacuum levels can be set by degree (in Kpa) or by time (in 0.1-second increments), making it suitable for both dry and watery or powdered products.

• Advanced Safety: Includes a safety sensor that automatically raises the sealing bar if foreign material or a finger is detected, as well as an automatic work-stop feature if the machine is left idle.



Specifications

Frequently Asked Questions (FAQs)

• What types of bags are compatible with the ValVac 600 E? The machine is suitable for general packing materials such as nylon, aluminum, polyethylene (PE), and anti-static bags.
• How do I ensure a high-quality seal? Always check for damage to the Teflon sheet and heat wire, keep sealing bars clean, and ensure the cooling time is at least three times longer than the sealing time.
• Does the machine have a safety mechanism for fingers? Yes, a built-in safety sensor will immediately raise the upper sealing bar if any foreign material or a finger is caught between the bars.
• Can I save different packaging settings? Yes, the controller includes M1–M5 modes to memorize various combinations of vacuum, gas flushing, and sealing processes.
• What is the difference between vacuuming by "Degree" versus "Time"? Degree-based vacuuming (V mode) is typically used for solid, non-watery products, while time-based vacuuming (T mode) is better for watery or powder products.
• How do I stop the machine in an emergency? You can press the STOP or EMERGENCY button, or pull the electric cord to immediately cut off power.
• What maintenance is required for the vacuum line? Regularly clean the nozzle, silicon hose, and vacuum filter to prevent foreign material from causing a malfunction.
• What should I do if the N.F.B. (Circuit Breaker) turns off? Check for a short circuit caused by damaged Teflon tape or incorrect voltage, and solve the cause before turning it back on.
• Can the ValVac 600 E perform multiple gas flushings? Yes, it can be set for up to 3 gas flushing cycles and 4 vacuum cycles per work sequence.
• Is the machine suitable for food packaging? Absolutely; it is designed for food applications including meat, fish, vegetables, nuts, and hot foods to prevent oxidation and decomposition.
