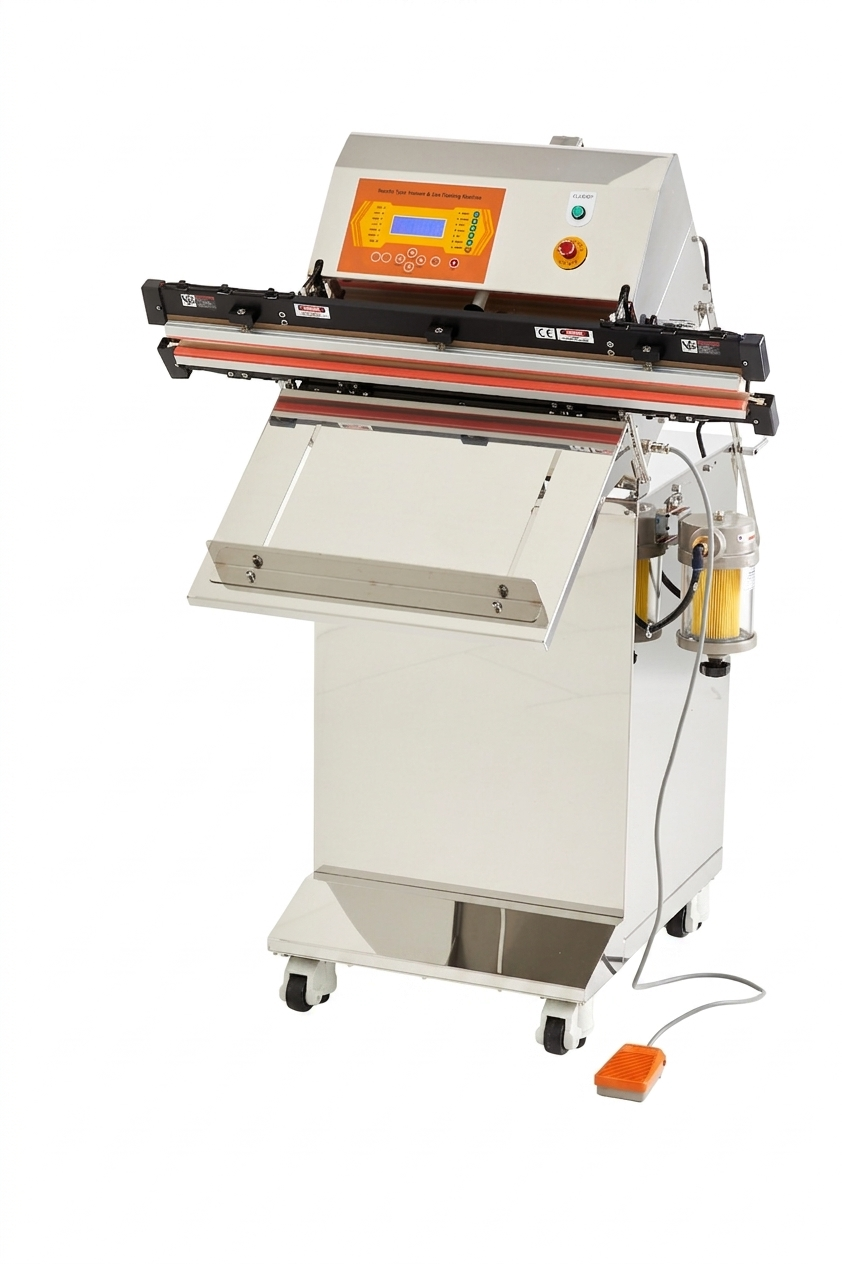

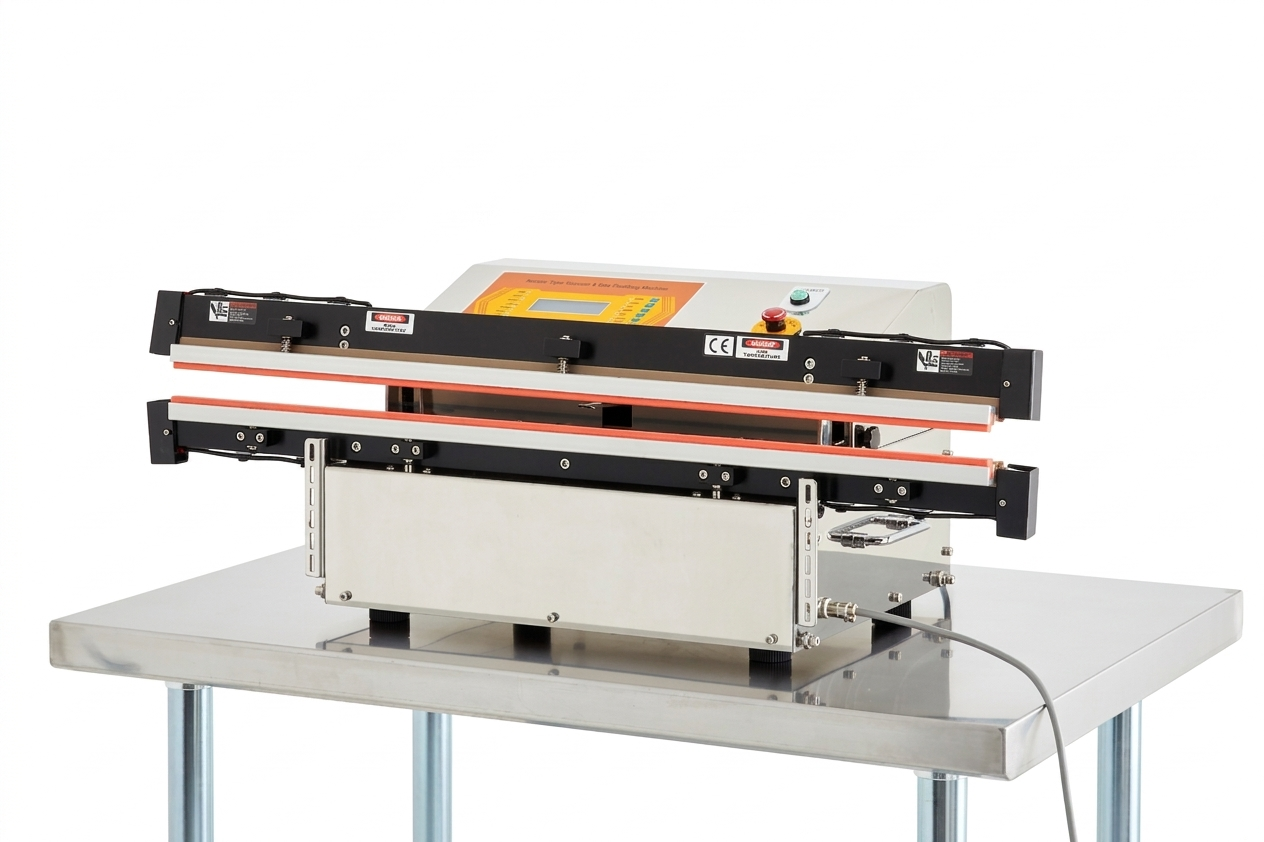

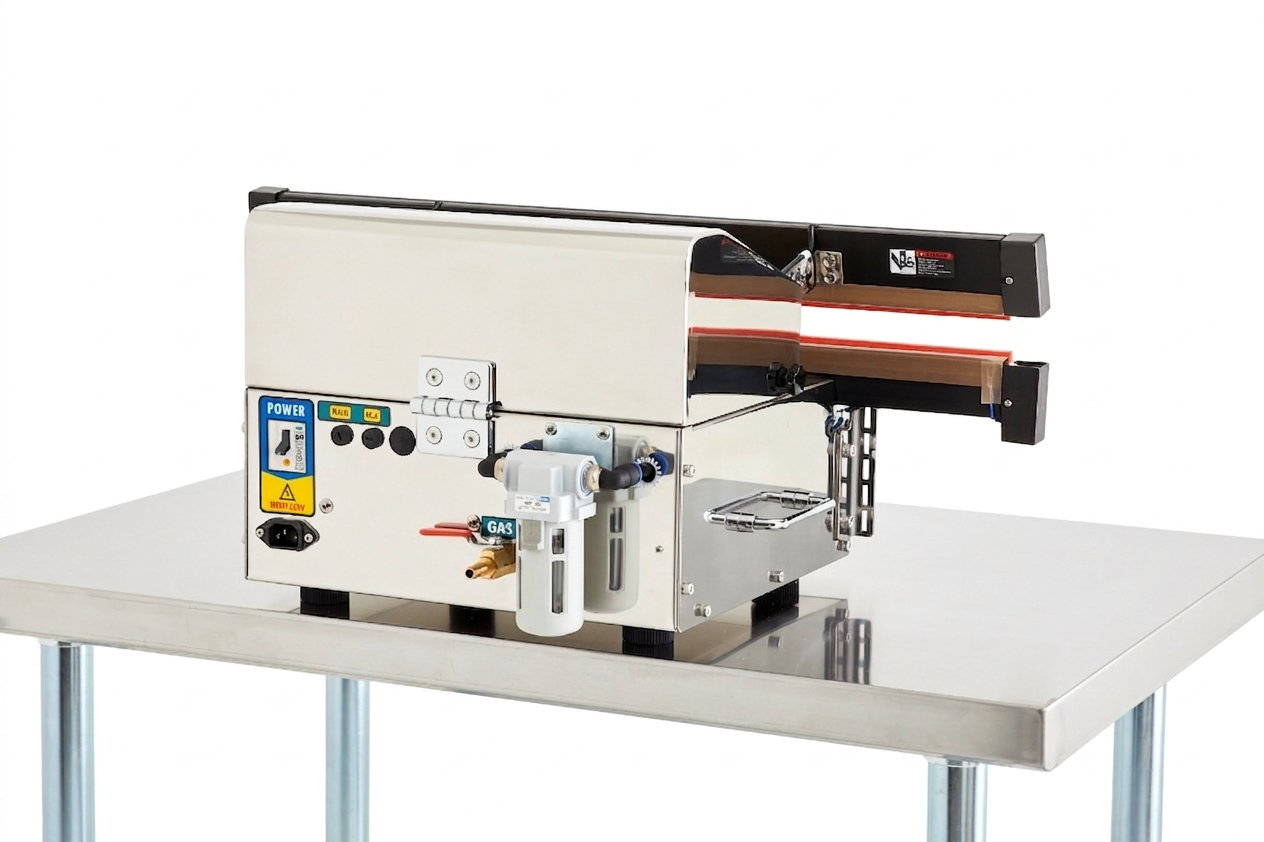

ValVac 450 ES Vacuum Sealer with Stand

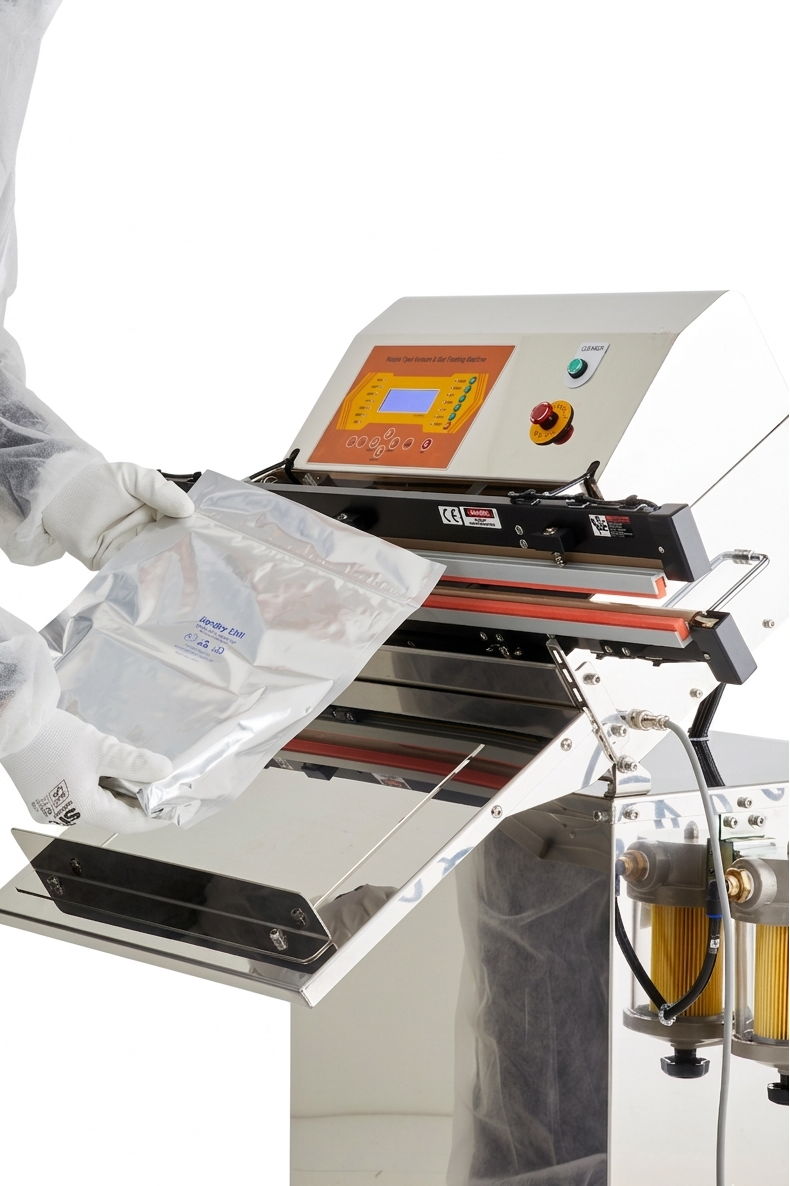

The ValVac 450 ES is a professional-grade, nozzle-type vacuum and gas flushing sealer designed for high-precision packaging in both industrial and food sectors. Constructed with a robust stainless steel body and supported by a heavy-duty pedestal stand, it offers a powerful pneumatic-driven sealing system and an ergonomically slanted design for ease of use in high-volume environments.

Sealing length 450mm, sealing width 5mm or 10mm

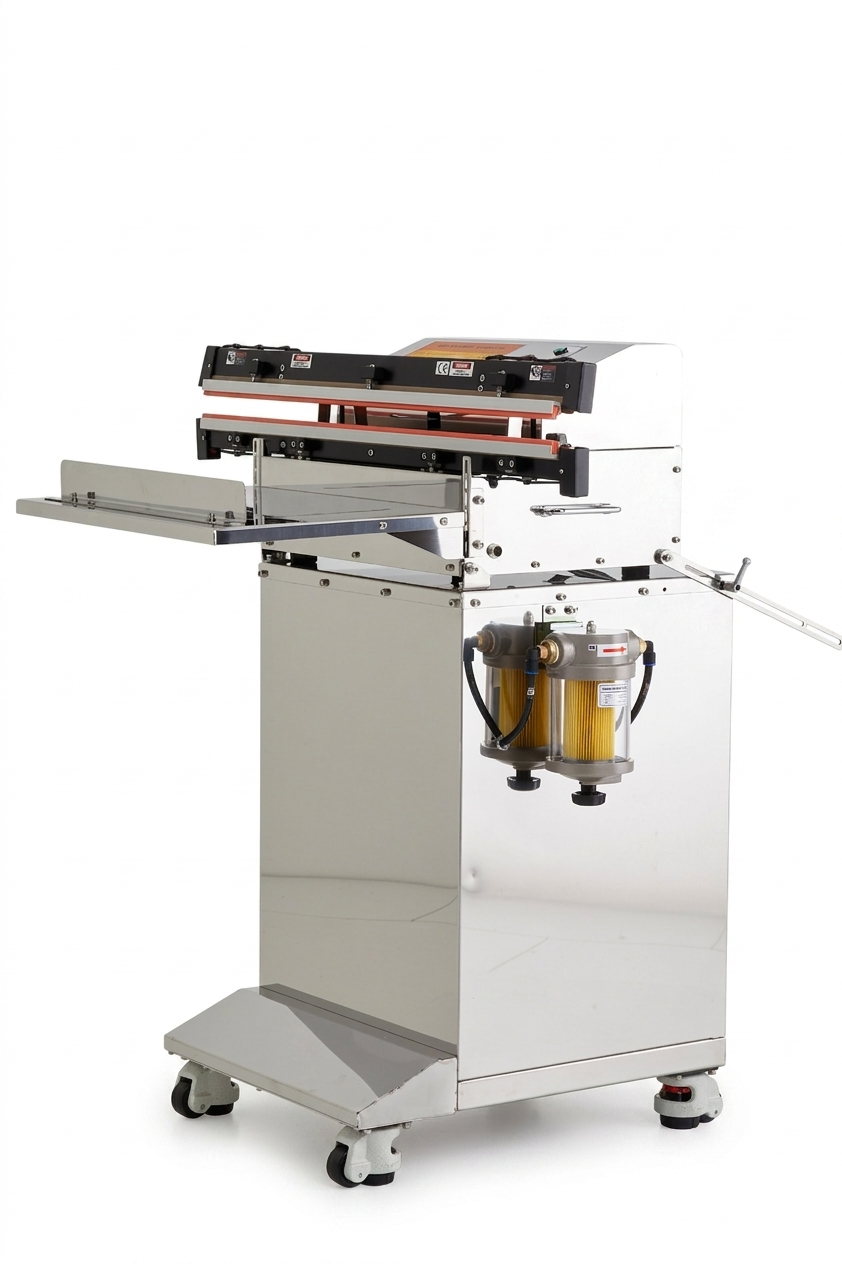

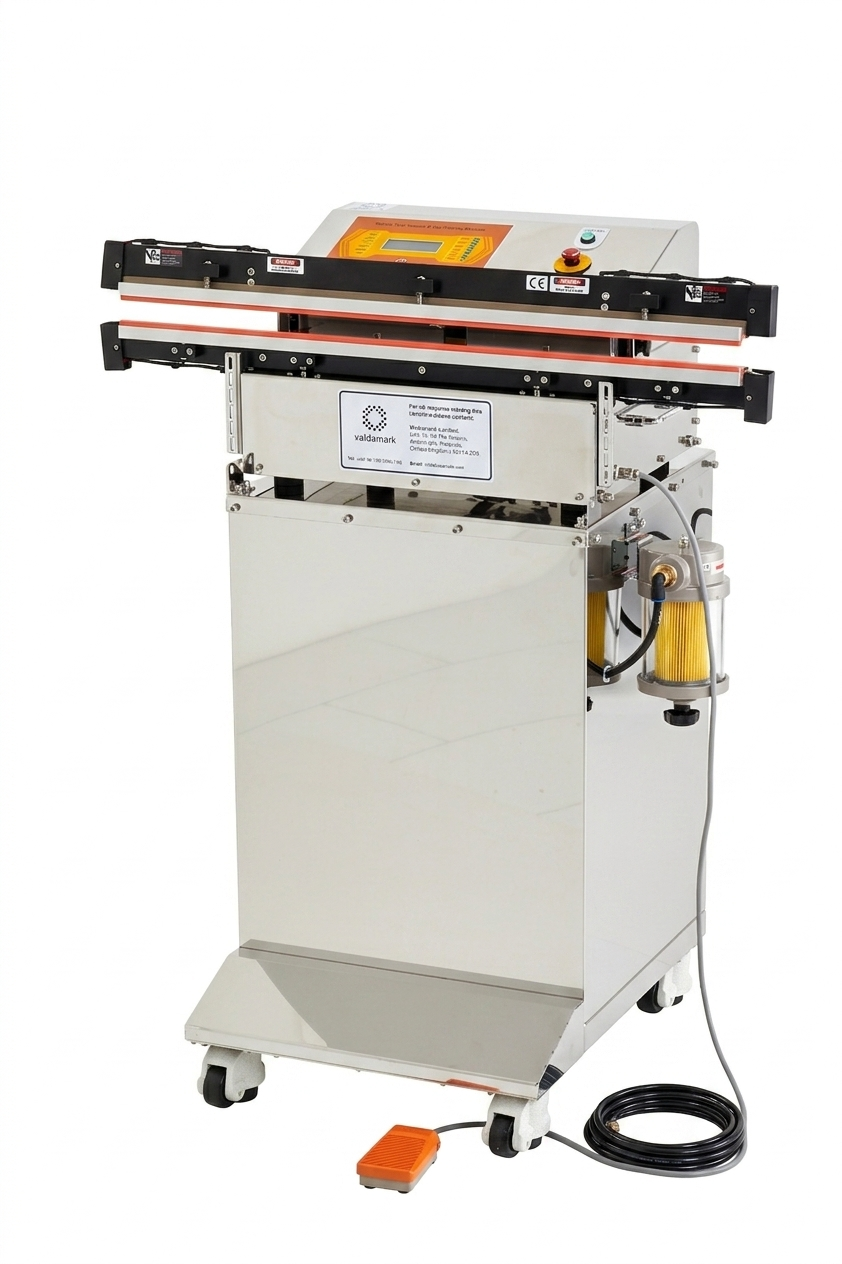

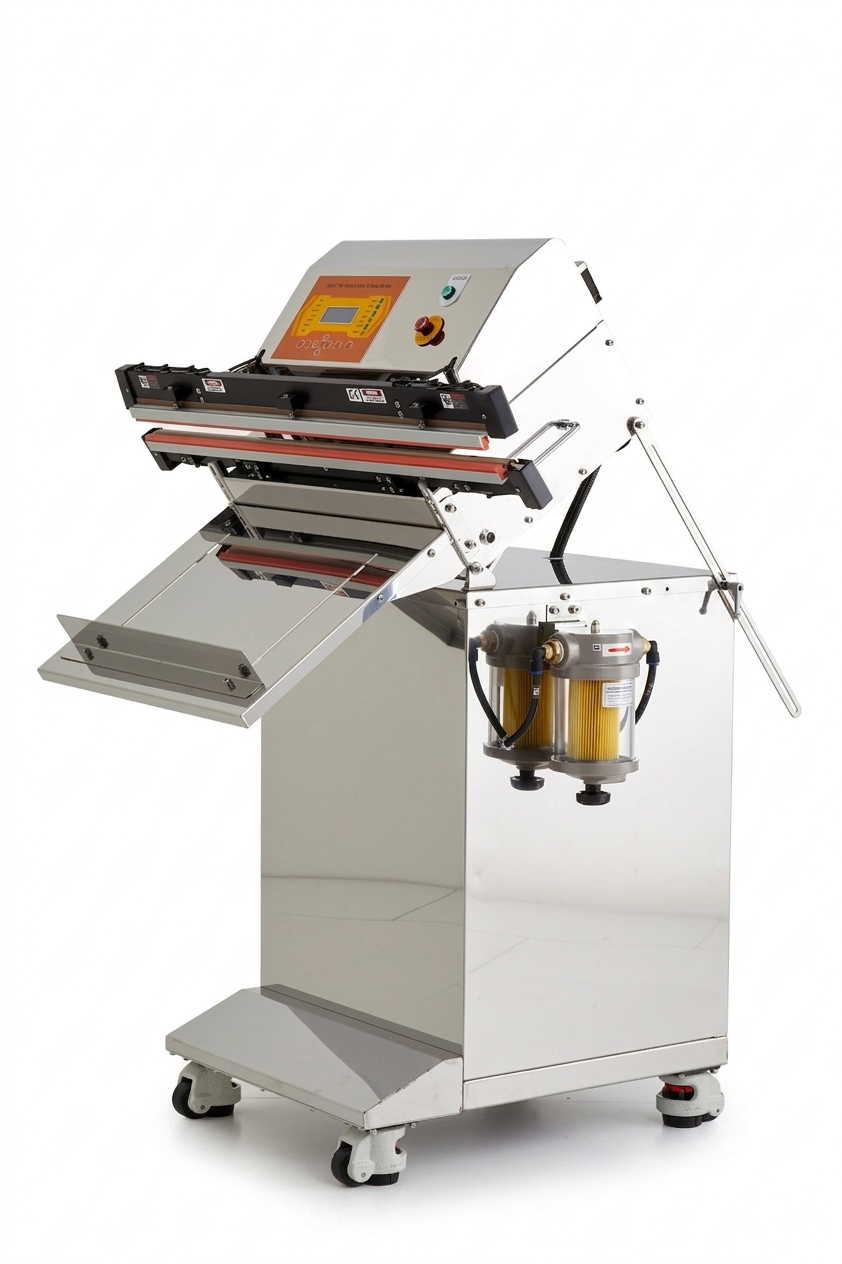

The ValVac 450 ES is a versatile packaging solution designed to protect goods from decomposition, oxidation, and external contaminants. This model is mounted on a integrated stainless steel stand, providing a stable, waist-height workspace that includes built-in air filtration and water separation units.

It utilizes a high-accuracy MYCOM controller (superior to standard PLCs) and runs on stable DC 24V for its major electrical components. Its pneumatic operation ensures powerful sealing with low electricity consumption, while the unboxed controller design allows for effective heat radiation, enhancing the machine's durability.

Product Overview

The machine provides multiple operational modes to accommodate various packaging needs:

• S Mode: Dedicated for sealing only.
• V Mode: Performs a vacuum cycle followed by sealing.
• M1–M5 Modes: Customizable modes that allow for up to 4 vacuum cycles and 3 gas flushing cycles in a single sequence.
• Precision Control: Vacuum levels can be set by degree (in Kpa) or by time (in 1-second increments), supported by a built-in vacuum sensor.

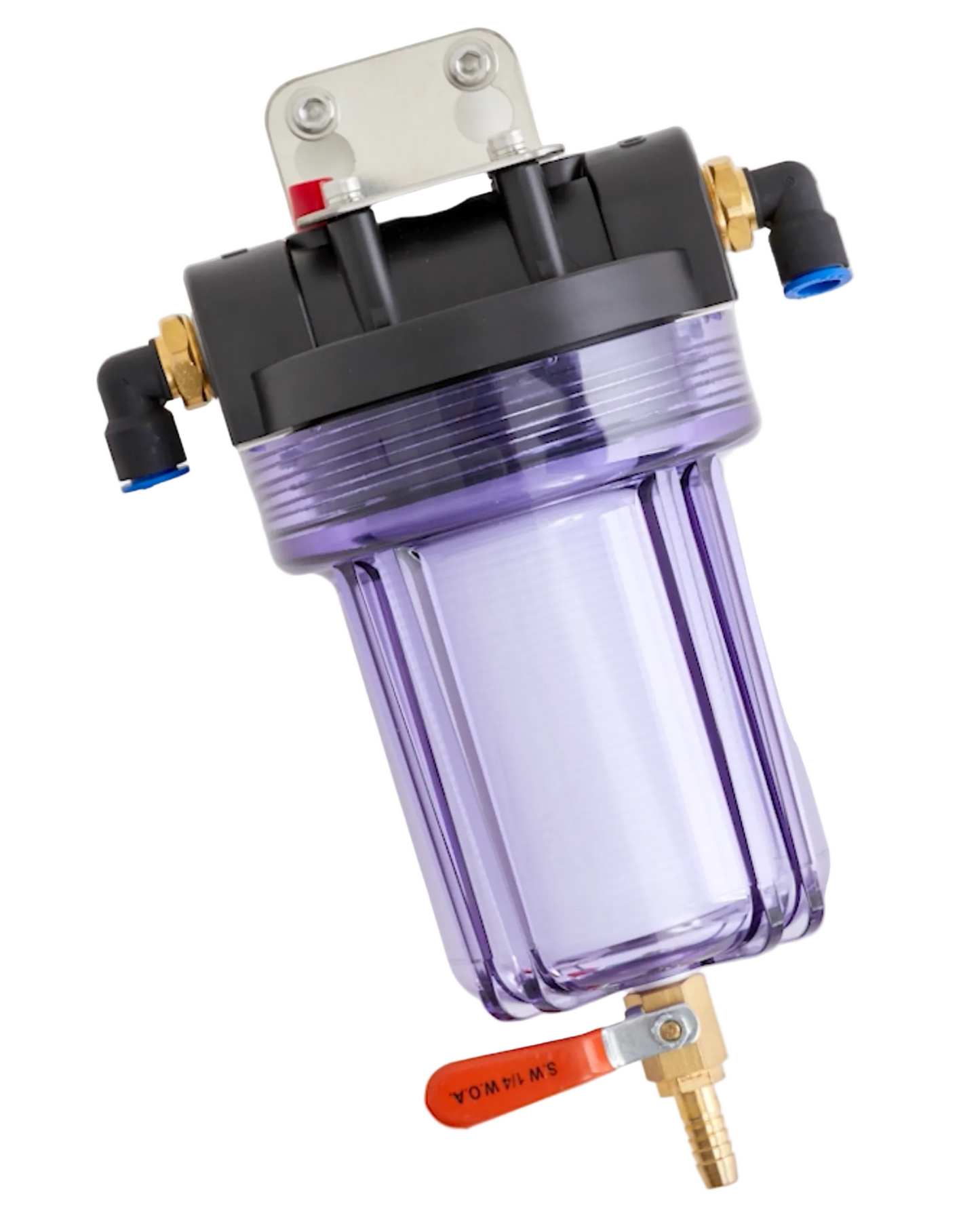

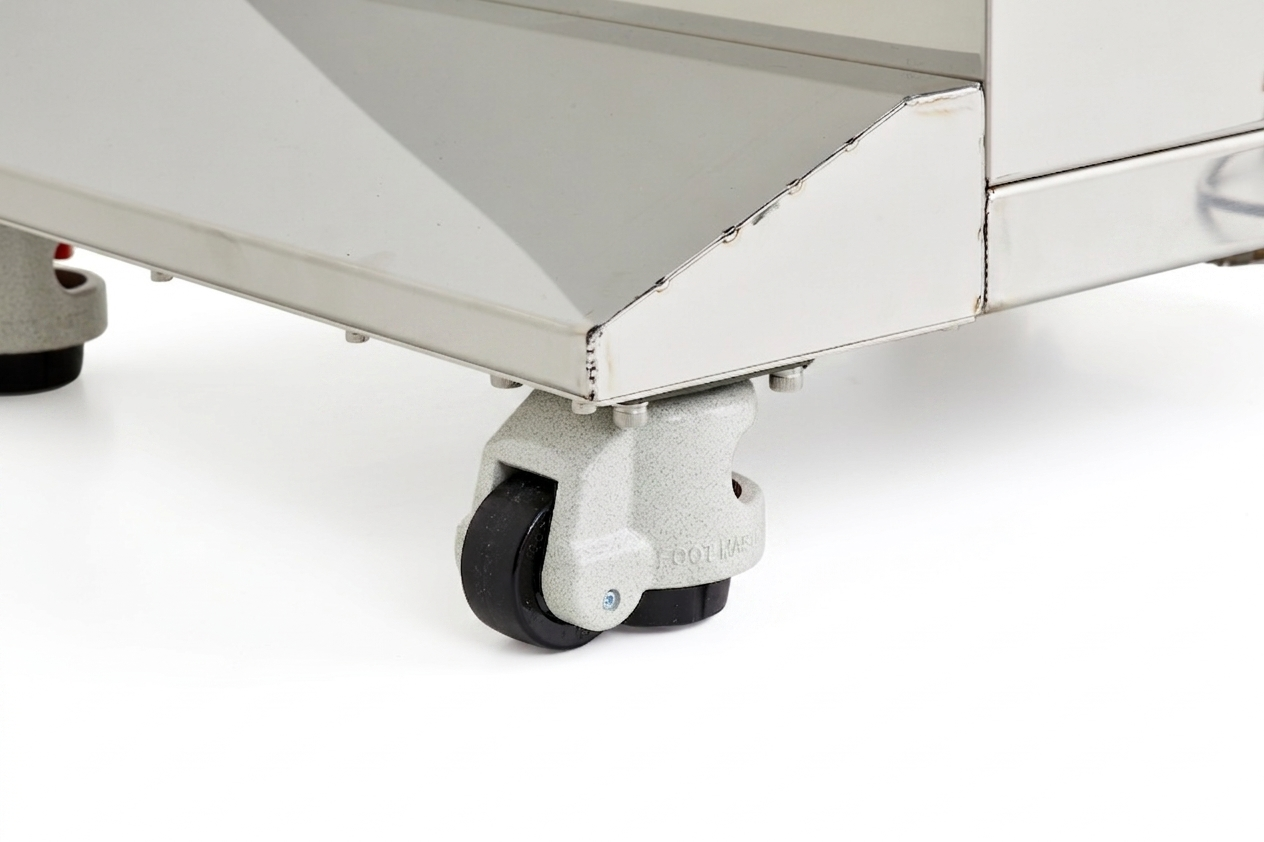

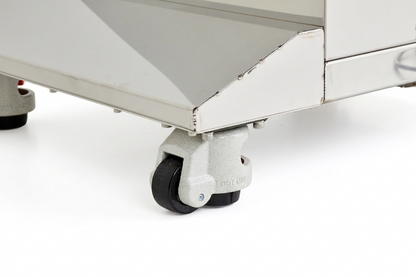

• Integrated Stand: Features a sturdy vertical support column and dual filtration canisters to ensure the air used in the pneumatic system is clean and dry.
• Advanced Safety: Includes a safety sensor that automatically raises the sealing bar if foreign material or a finger is detected, as well as an automatic work-stop feature if the machine is left idle.

Specifications

Frequently Asked Questions

• What is the primary construction material? The entire assembly, including the machine head and the floor stand, is constructed with durable, easy-to-clean stainless steel.
• What is the benefit of the included stand? The stand provides an ergonomic working height and houses the essential air filter-regulator-lubricator units, ensuring the machine operates at peak performance with clean air.
• How is vacuum pressure created in this model? It uses an ejector system powered by compressed air, eliminating the need for heavy, oil-filled vacuum pumps.
• Does the machine have a safety mechanism? Yes, it features a prominent emergency stop button and a safety sensor that immediately raises the sealing bar if a finger or foreign material is detected.
• Can I save different packaging settings? Yes, the controller includes M1–M5 modes to memorize various combinations of vacuum, gas flushing, and sealing processes.
• How accurate is the machine's controller? The ValVac 450 ES uses a MYCOM controller, which offers significantly more accuracy than a standard PLC.

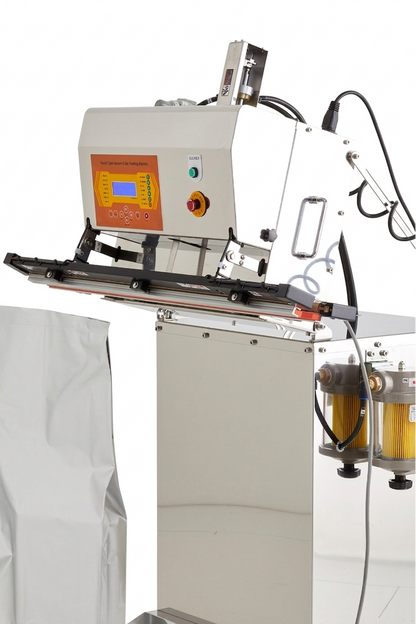

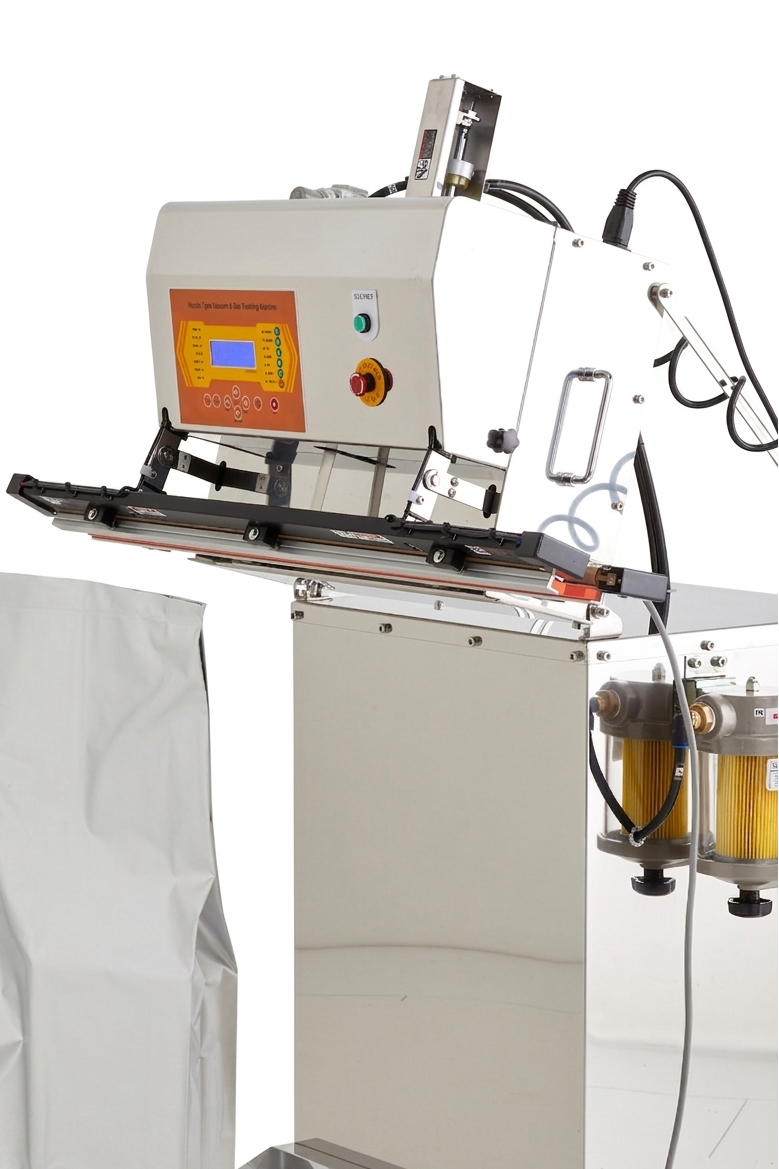

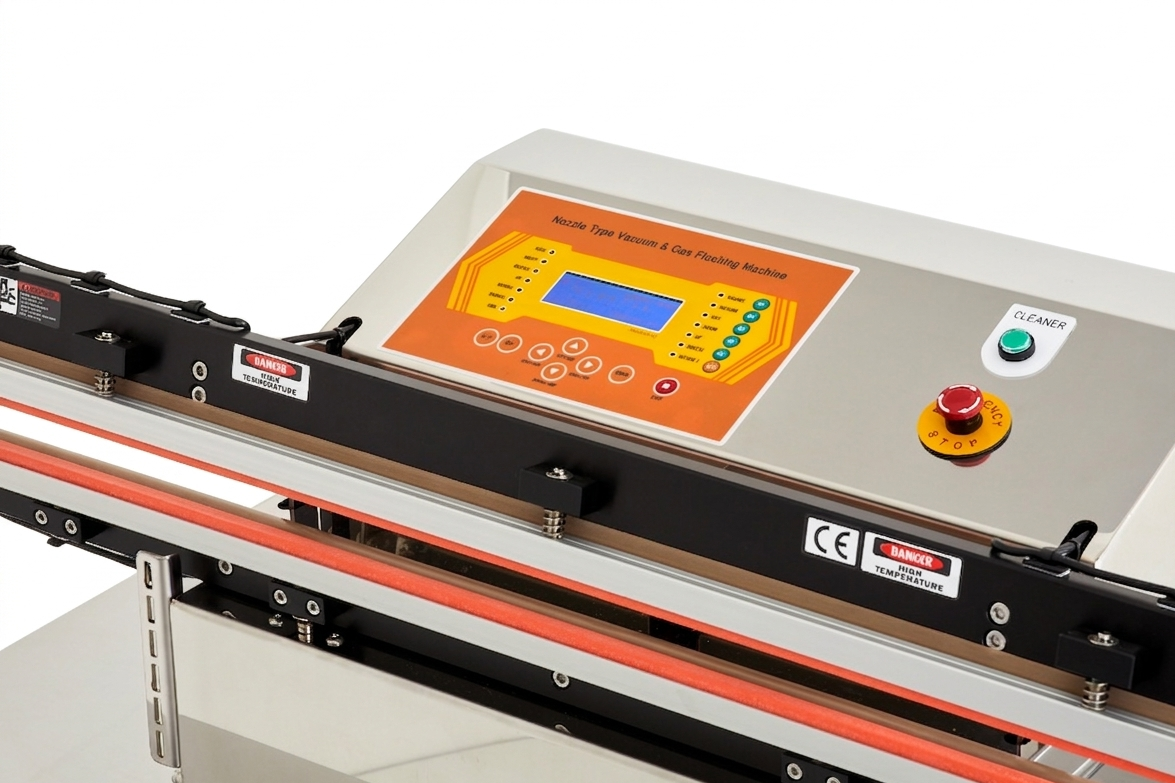

• Is the machine easy to monitor? Vacuum levels and cycle progress are visualized digitally on a large, high-contrast LCD screen located on the front panel.
• What industries typically use the ValVac 450 ES? It is ideal for industrial goods like semiconductors and medical devices, as well as food products including meat, fish, and vegetables.
