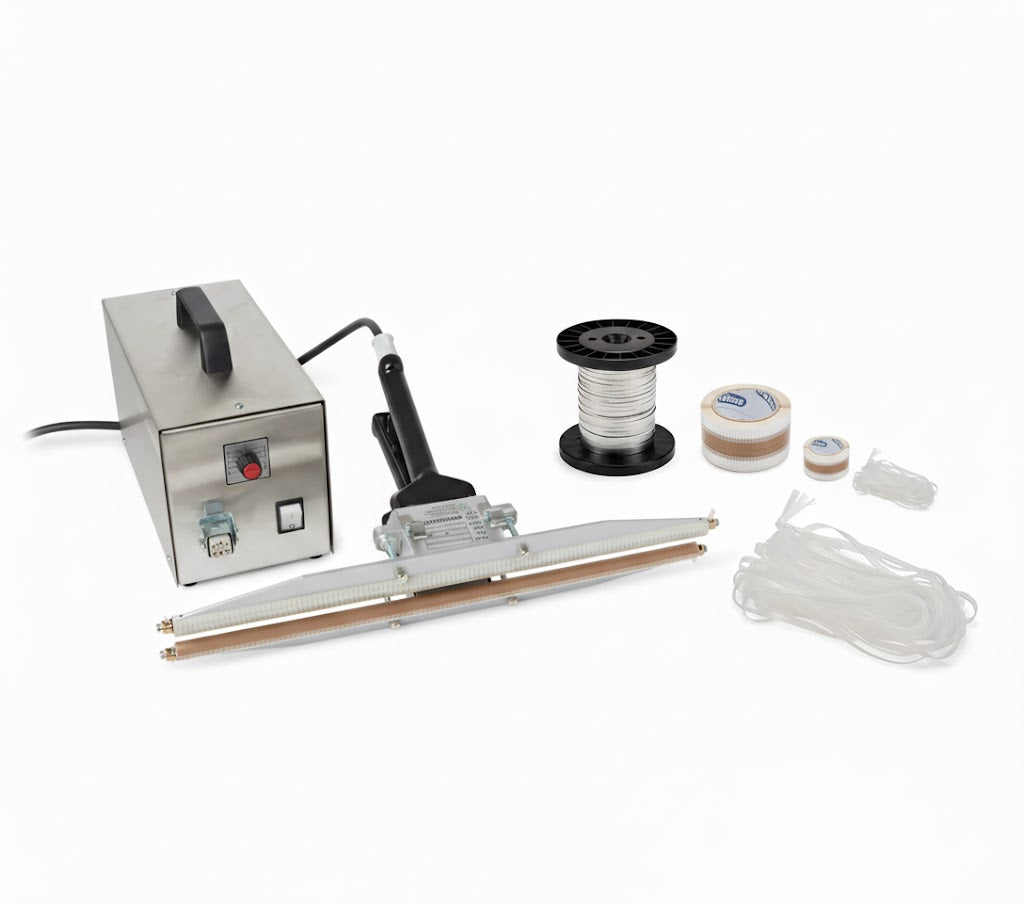

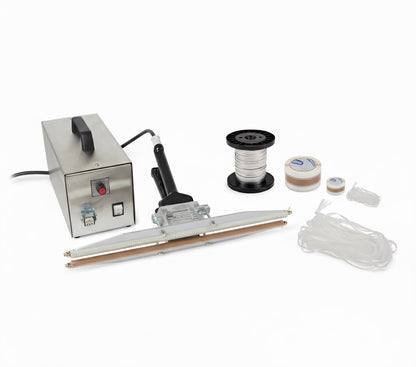

Hawo HPL ISZ IVM 450mm Hand Held Impulse Heat Sealer | Machine & Transformer Power Supply Box + Optional Spare Parts Kit
Hawo HPL ISZ IVM 450mm Hand Held Impulse Heat Sealer | Machine & Transformer Power Supply Box + Optional Spare Parts Kit
16 in stock
Couldn't load pickup availability
- International Delivery
- Bulk Buying Discounts
- Best-in-Class Products
The Hawo HPL ISZ + Teflon™ Coating impulse heat sealer is perfect for the hermitic sealing of poly bags.
The unit features a 450 width ceramic blade. Supplied including the transformer box required for a safe power supply.
- These units are all lightweight, flexible and very efficient.
- Perfect where optimal heat seals are required.
- Please note Tyvek® is registered Dupont IP
Please select the ► play button on the video below
Units supplied as standard with a 3 pin UK 230 V plug connection. United states 2 pin 110V and European 2 pin 230V plug connections can be supplied at no extra cost. If you require a specific plug please state this in the additional details section of the order at the checkout.
- Includes 1 year Hawo factory warranty.

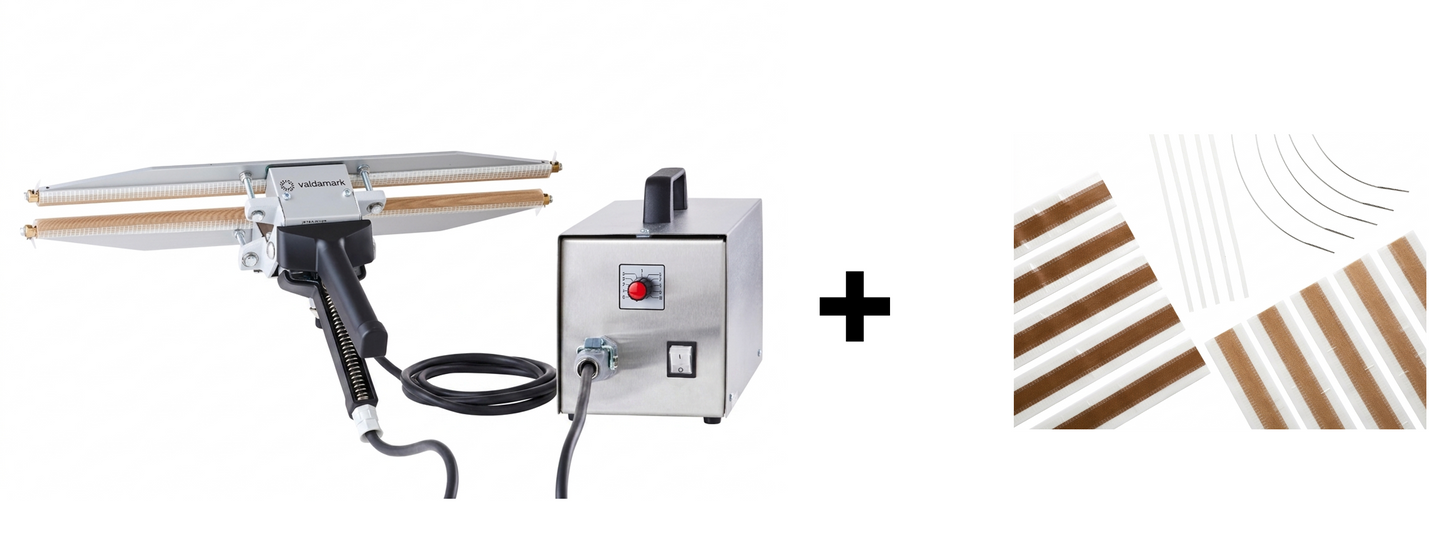

- Model pictured is a HPL ISZ 300mm Jaw with transformer box.
Hawo HPL ISZ Impulse Heat Sealer 300mm
This manual impulse heat sealer is perfect for welding materials such as polyethylene, polypropylene, PVC, and polyamid. Thin Pe laminated paper and aluminium composite foil welding can also be done. For a constant manual bag sealer see the Hawo HPL WSZ range.
The market leading design focuses around optimal seal quality. This portable heat sealer allows the operator to easily work in small spaces. Or when sealing on site.
It's also intended for those that produce their own packaging and want more manoeuvrability.
Perfect for when the items being packaged may vary in size. Or be awkward to seal.
As well as these excellent ergonomic features this sealer is designed with a 'built to last' mentality. No 'heat up time' is standard here. Allowing this unit to perform for the most demanding of sealing projects.
This impulse sealer is easy to handle thanks to a separate impulse power supply box.
The welding process is automatic and can be adjusted to suit your temperature requirements. It can even be adjusted after you close the tong.
These heat sealers can also be used in conjunction with on of our table mountings as an extra. These allow for the best usability and ease of storage.
This machine can be used in some medical packaging environments but where ISO 11607 packaging validation is required look here for suitable solutions.
Benefits of this machine
- Suitable for the thermal packaging of Polyethylene, Polypropylene, Polyamide, thin PE-coated paper and aluminium film.
- Mobile.
- No heat-up time.
- Ceramic sealing welds.
Technical Data
- Hawo hpl ISZ 300 Impulse Heat Sealer 300mm.
- Welding pliers for films have a seam length of 300mm (11.8in) Welding time Infinitely adjustable.
- Seam Width 3mm (0.12 in).
- Film thickness tolerance 2 x 0.5 (0.02 in).
- Power Supply 250VA, Mains connection 230V, 115V.
- Total Weight 6.2KG (13.6lb) Soldering pliers weight 1.7kg (3.7lb).
Delivery Time
2 - 3 Working Days.
Frequently Asked Questions
• What exactly is the Hawo ISZ-IVM 450mm Hand Held Impulse Heat Sealer and what's its main purpose?
The Hawo ISZ-IVM 450mm is a high-quality, handheld impulse heat sealer designed specifically for creating strong, hermetic seals on various thermoplastic films. Its primary purpose is to efficiently seal packaging materials, ensuring product integrity and protection.
• How does "impulse heat" technology work in the Hawo ISZ-IVM 450mm to create seals?
The "impulse heat" in the Hawo ISZ-IVM 450mm means that the sealing element heats up only for a brief moment, precisely when the jaws are closed to create a seal, and then cools down immediately. This method is incredibly energy-efficient and allows the seal to set under pressure, resulting in a consistent and robust bond.
• What types of packaging materials can I effectively seal with this Hawo machine?
The Hawo ISZ-IVM 450mm is incredibly versatile and can effectively seal a wide range of thermoplastic materials, including polyethylene, polypropylene, PVC, polyamide, thin PE-coated paper, and even aluminium composite foils.
• Is the Hawo ISZ-IVM 450mm suitable for both small-scale and more demanding sealing projects?
Yes, absolutely. While it's a handheld unit, its "built to last" mentality and the fact that it requires no heat-up time means the Hawo ISZ-IVM 450mm is designed to perform reliably for both occasional use and more demanding, mid-to-high volume sealing projects.
• What's included when I purchase the Hawo ISZ-IVM 450mm from Valdamark Direct?
When you purchase the Hawo ISZ-IVM 450mm from Valdamark Direct, it typically comes supplied as a complete unit including the handheld sealing tongs and a separate transformer box, which is essential for a safe and consistent power supply.
Relevant products you may want to consider:
• What are the main advantages of using a handheld heat sealer like the Hawo ISZ-IVM 450mm over a desktop model?
The main advantage of a handheld heat sealer like the Hawo ISZ-IVM 450mm is its exceptional mobility and flexibility. It allows operators to seal items directly at their location, especially useful for large, heavy, or awkwardly shaped products that can't easily be brought to a static sealing machine.
• Does the Hawo ISZ-IVM 450mm have an automatic sealing process?
Yes, the Hawo ISZ-IVM 450mm features an automatic welding process. Once the jaws are closed on the material, the sealing impulse is automatically generated for the pre-set duration, ensuring consistent results without manual timing.
• How wide of a seal can the Hawo ISZ-IVM 450mm create?
The Hawo ISZ-IVM 450mm creates a strong and reliable 3mm wide sealing seam, which is ideal for a secure closure on a variety of flexible packaging materials.
• Is the sealing time on the Hawo ISZ-IVM 450mm adjustable for different materials?
Yes, the sealing time on the Hawo ISZ-IVM 450mm is infinitely adjustable. This crucial feature allows you to fine-tune the heat application to perfectly suit the specific thickness and type of film you are sealing, ensuring optimal seal quality every time.
• Does this Hawo sealer offer any ergonomic benefits for the user?
The Hawo ISZ-IVM 450mm is designed with excellent ergonomic features. Its lightweight nature and the separate impulse power supply box make it very easy to handle, reducing user fatigue during prolonged use.
Relevant products you may want to consider:
• What is "Teflon™ Coating" on the Hawo HPL ISZ, and why is it important?
The "Teflon™ Coating" on the sealing jaws of the Hawo HPL ISZ (which the ISZ-IVM is part of) is a non-stick layer that prevents the molten plastic from adhering to the sealing elements. This ensures clean seals, prolongs the life of the heating element, and makes cleaning easier.
• Where would the Hawo ISZ-IVM 450mm be particularly useful in an industrial setting?
The Hawo ISZ-IVM 450mm is particularly useful in industrial settings for sealing large products, machinery, or components, especially when they need to be sealed directly on-site or in awkward positions. It's also excellent for packaging spare parts across various industries.
• Can the Hawo ISZ-IVM 450mm be used for packaging food products or pharmaceuticals?
Yes, the reliable and consistent seals produced by the Hawo ISZ-IVM 450mm make it suitable for packaging various industrial products, including those in the food, pharmaceutical, and laboratory sectors, where package integrity is paramount.
• Is this Hawo sealer suitable for creating custom-sized bags from lay-flat tubing?
While the Hawo ISZ-IVM 450mm does not have an integrated cutter, it can certainly be used to seal lay-flat tubing to create custom-sized bags. You would simply cut the tubing to your desired length using a separate tool before sealing the ends.
• Could the Hawo ISZ-IVM 450mm be used in a retail or wholesale environment for packaging goods?
Absolutely. Its portability and ease of use make the Hawo ISZ-IVM 450mm a great asset for commercial products in wholesale or retail sectors, allowing for efficient and professional packaging of diverse items.
Relevant products you may want to consider:
• How does the Hawo ISZ-IVM 450mm contribute to product safety during transport?
By creating a strong, hermetic seal, the Hawo ISZ-IVM 450mm helps ensure that products remain well-protected during transport, preventing shifting, minimizing contamination, and safeguarding against tampering, especially for sensitive items.
• What is the significance of the 450mm seal length for this particular Hawo model?
The 450mm seal length of the Hawo ISZ-IVM 450mm signifies its capacity to seal packages up to this width, making it a very versatile tool for larger items that might not fit into smaller heat sealers, offering broader application possibilities.
• Before I start sealing, what important check should I make with the Hawo ISZ-IVM 450mm?
Before you begin sealing with the Hawo ISZ-IVM 450mm, it's crucial to ensure that the packaging material is lying completely flat and free of wrinkles, folds, or creases in the sealing area, as these can interfere with creating a perfect seal.
• How do I adjust the sealing time on the Hawo ISZ-IVM 450mm for different film thicknesses?
You adjust the sealing time by turning the control knob on the separate W.I.N.G. impulse power pack. It's always best to start with a shorter time on a sample piece of film and gradually increase it until you achieve a perfect, strong, and un-scorched seal.
• What's the correct way to operate the Hawo ISZ-IVM 450mm to create a good seal?
To create a good seal, insert the material between the sealing jaws, ensure it's smooth and taut, then close the tongs by hand. The sealing impulse will activate automatically. Hold the tongs closed until the sealing period is complete, then allow a few seconds for cooling before releasing the material.
Relevant products you may want to consider:
• How can I tell if the seal created by the Hawo ISZ-IVM 450mm is too weak or too strong?
If the seal is too weak, the seam will open easily, indicating that the welding time was too short. If the seal is too strong, the seam might appear scorched or melted through, meaning the welding time was too long. You should adjust the timer accordingly and re-test.
• Can the Hawo ISZ-IVM 450mm be used as a static table model, and if so, how?
Yes, the Hawo ISZ-IVM 450mm can be used as a static table model with an optionally available table clamp. This allows for hands-free operation and provides stability for certain applications.
• What kind of maintenance does the Hawo ISZ-IVM 450mm require to keep it in optimal condition?
To keep your Hawo ISZ-IVM 450mm in optimal condition, regular cleaning of the sealing elements and ensuring the PTFE cover (Teflon tape) is intact are crucial. Periodically check and replace consumable parts like the heating ribbon and PTFE ribbon as they show signs of wear.
• How do I know when it's time to replace the PTFE cover or heating ribbon on my Hawo ISZ-IVM 450mm?
You'll know it's time to replace the PTFE cover when it starts to darken significantly or show signs of burning through, as this indicates the heating element is starting to short out. The heating ribbon needs replacement if it's broken or no longer heats uniformly.
• Is it safe to clean the Hawo ISZ-IVM 450mm with water or liquid cleaners?
No, it is critically important to disconnect the Hawo ISZ-IVM 450mm from the power supply and only clean it with a dry or slightly damp soft cloth and a mild cleaning agent. Water can cause long-term damage and should never be allowed to enter the device.
Relevant products you may want to consider:
• Does Valdamark Direct offer spare parts for the Hawo ISZ-IVM 450mm?
Yes, Valdamark Direct typically offers spare parts kits for Hawo HPL ISZ IVM models, including the 450mm version, which usually contain essential consumables like heating ribbons and PTFE strips to ensure the longevity of your sealer.
• Are there specific safety precautions I should be aware of when using the Hawo ISZ-IVM 450mm?
Always ensure the Hawo ISZ-IVM 450mm is used indoors and in a dry, dampness-free environment. Never introduce metallic objects into the sealing area, and always unplug the machine from the main power supply before any maintenance or cleaning.
• Does the Hawo ISZ-IVM 450mm meet any specific industry standards or certifications?
While the Hawo ISZ-IVM 450mm is a robust industrial tool, for applications requiring strict validation like in certain medical packaging environments, other Hawo models (like the "AS-V" series) specifically conform to standards like ISO 11607-2. Always check your specific industry requirements.
• What are the typical lead times for ordering the Hawo ISZ-IVM 450mm from Valdamark Direct?
As a premium product, the Hawo ISZ-IVM 450mm may have varying lead times depending on stock levels and demand. It's always best to check directly with Valdamark Direct for current availability and estimated delivery times.
• Does the Hawo ISZ-IVM 450mm come with a warranty?
Yes, the Hawo ISZ-IVM 450mm typically includes a 1-year Hawo factory warranty, providing assurance regarding the quality and durability of the product.
