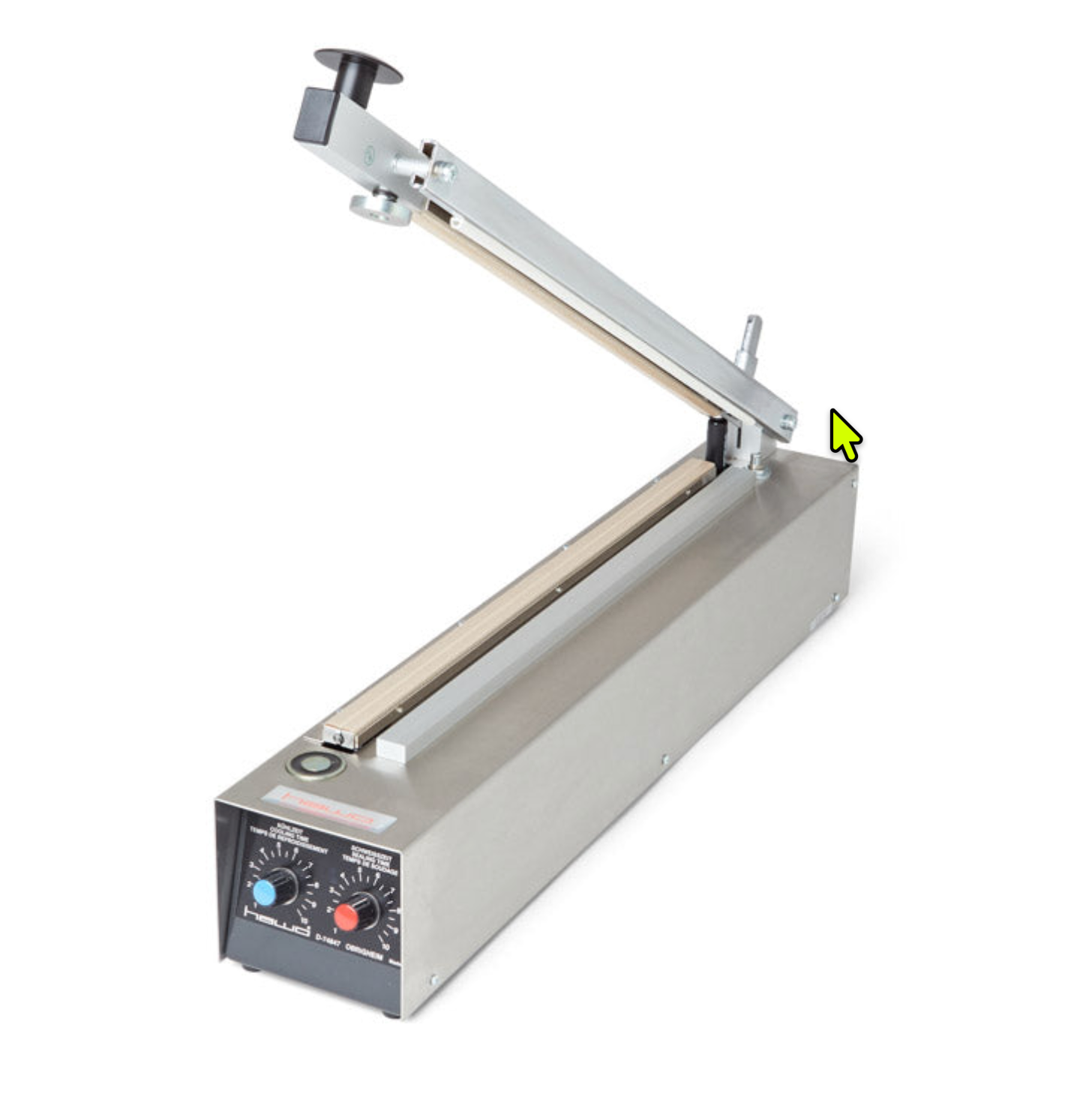

Hawo HPL 500 BMS Table Top Heat Sealer | Professional Table Top Impulse Bar Sealer for Polythene Based Packaging | Standalone Sealing Machine + Optional Spare Parts & Accessories

The hpl 500 BMS Impulse sealer represents the pinnacle of professional-grade packaging technology, specifically engineered by Hawo for demanding industrial environments. Unlike traditional heat sealers that remain hot throughout the workday, this impulse-driven system provides instantaneous heat only when needed, ensuring maximum energy efficiency and operator safety.

For businesses looking to optimize their workflow, understanding the capabilities of industrial impulse sealing technology is essential. This device is a versatile powerhouse, capable of handling a wide variety of thermoplastic films with precision, making it a preferred choice for those who value high-performance packaging solutions.

Exceptional Efficiency: The hpl 500 BMS Review

The hpl 500 BMS Impulse sealer is more than just a sealing bar; it is a comprehensive workstation designed for high-throughput bagging operations. The standout feature is undoubtedly the integrated magnetic lock. This system automatically holds the sealing arm down once engaged, releasing it only after the cooling phase is complete. This automation ensures a consistent seal every time, regardless of the operator's manual pressure. Furthermore, the integrated cutting device allows users to create custom-sized bags from tubular film, which drastically reduces material overhead and increases flexibility. When comparing this model to others in the Hawo HPL series, the 500mm sealing length provides the necessary width for larger industrial applications. Our analysis suggests that the precision control over both sealing and cooling times allows for a perfect weld on even the most delicate foils. For more insights on equipment durability, visit our sealer longevity study.

Specifications

• Sealing ProcessImpulse Sealing
• Sealing Length500 mm (19.7 in)
• Sealing Width3 mm (0.12 in)
• Warm-Up TimeNone (Immediate operation)
• Film MaterialsPE, PP, PA/PE, PVC (up to 2 x 0.5 mm)
• Locking MechanismMagnetic (automatic opening)
• Sealing TimeContinuously adjustable
• Cooling TimeContinuously adjustable
• Integrated FeaturesCutting device and roll holder support
• Power Supply230 V, 50/60 Hz (115 V available)

Practical How-To Guides

Operating Your hpl 500 BMS Impulse Sealer

1. Initial Configuration: Plug the unit into a grounded outlet. Adjust the 'Sealing Time' and 'Cooling Time' dials based on the thickness of your film. For precise settings, refer to our film thickness guide.
2. Executing the Seal: Place your film over the sealing wire. Press the handle down until the magnetic lock engages. The indicator light will signal the heating phase.
3. The Cooling Phase: Once the heating ends, the magnet remains engaged for the cooling duration. This is critical for seal integrity. The arm will pop up automatically when finished.
4. Using the Cutter: While the arm is locked, slide the integrated cutting blade across the film to trim the bag to the desired length. For replacement blade kits, see our maintenance accessories page.
5. Maintenance: Regularly check the PTFE (Teflon) tape and heating wire for wear. For a step-by-step replacement tutorial, visit our HPL technical support portal.
