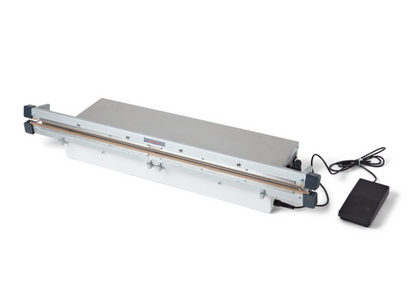

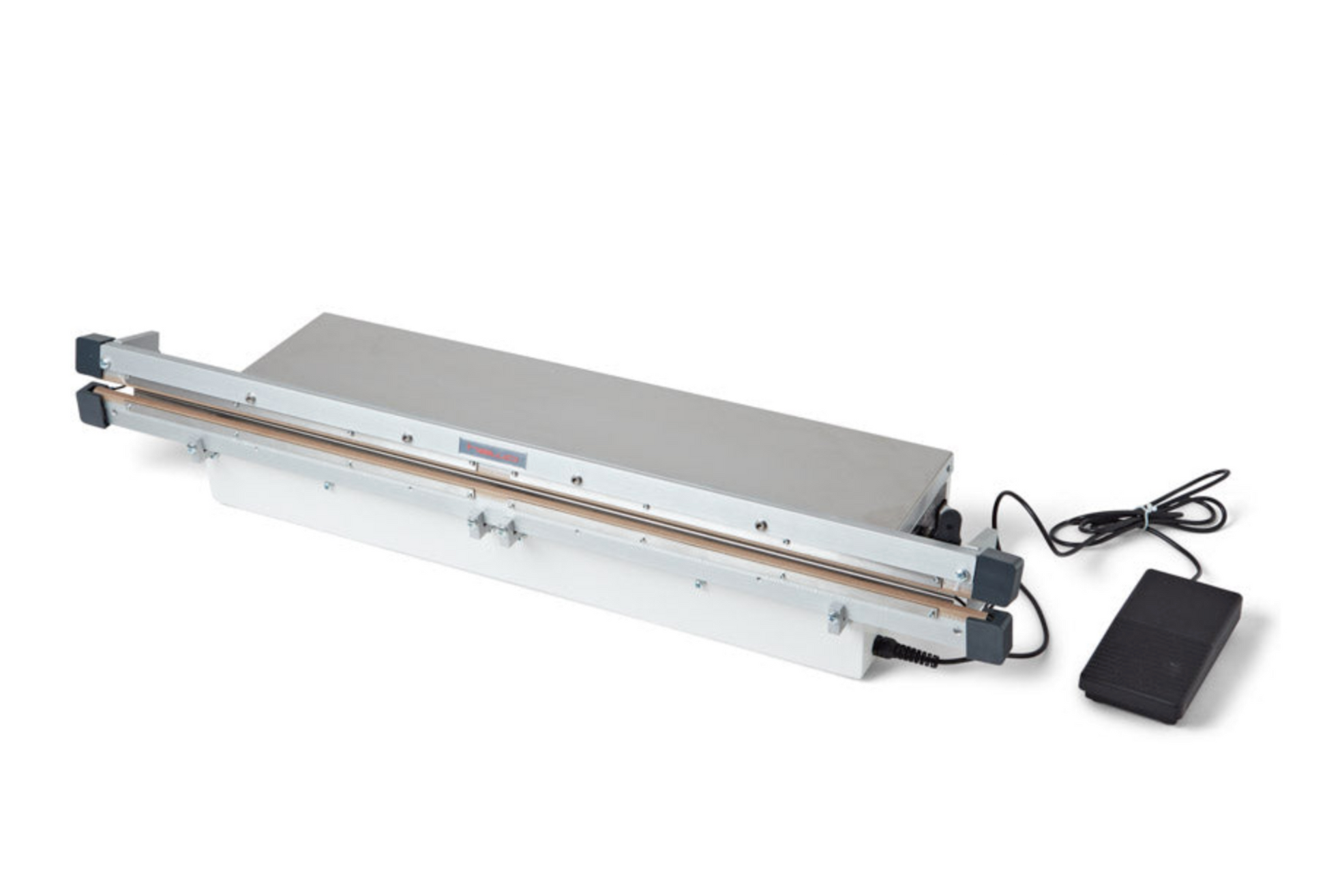

Hawo HPL 1000 AS Bar Sealer Foot Operated Impulse Sealer | Standalone Sealing Machine + Optional Spare Parts & Accessories | Horizontal & Vertical Configurations

Product Overview

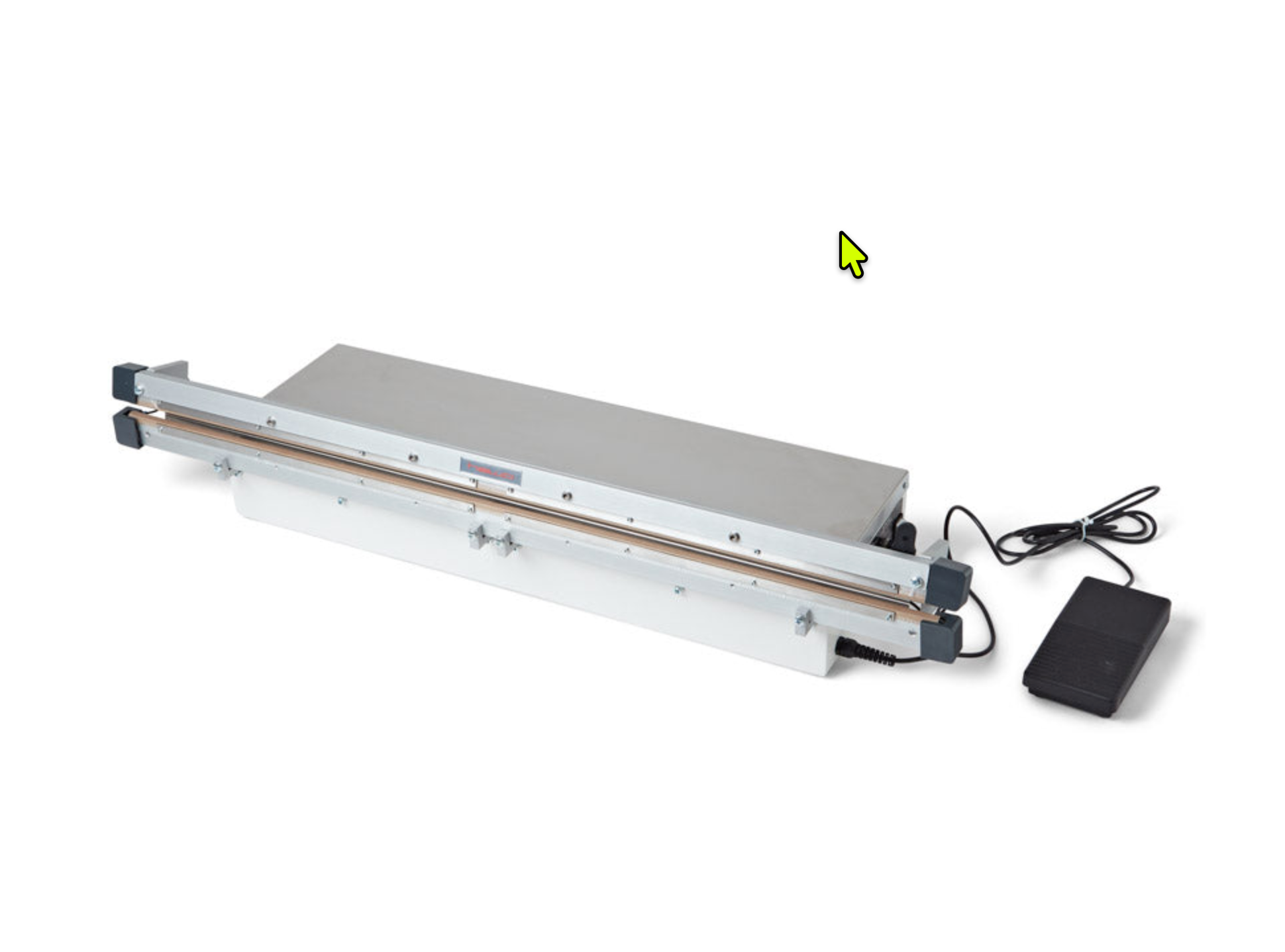

The HAWO HPL 1000 AS Sealer: Professional Grade Impulse Sealing

The HAWO HPL 1000 AS Sealer is a premium, semi-automatic impulse sealer designed for high-performance industrial and medical packaging applications. Renowned for its reliability and precision, this 1000mm sealer features a magnetic hold-down system that ensures consistent pressure and high-quality seals every time. Whether you are processing polyethylene, polypropylene, or complex laminates, the Hawo HPL 1000 AS delivers a professional finish without the need for pre-heating, making it an essential tool for high-volume production environments.

Equipped with an integrated cutting device and adjustable sealing and cooling timers, this device offers unparalleled flexibility and safety. It is the ideal solution for businesses looking to streamline their packaging workflow while maintaining the highest standards of seal integrity.

In-Depth Review: Efficiency Meets Precision

When it comes to heavy-duty impulse sealing, the HAWO HPL 1000 AS Sealer stands in a class of its own. After evaluating its build quality and operational throughput, it is clear why HAWO is a global leader in sealing technology. The standout feature is the magnetic locking mechanism, which eliminates the need for manual pressure throughout the sealing cycle. This not only reduces operator fatigue but also guarantees a uniform 3mm seal width across the entire 1000mm length.

Performance and Versatility

The HPL 1000 AS is exceptionally versatile, handling a wide range of thermoplastic films including PE, PP, and PVC. Because it utilizes impulse technology, the machine is ready for use the moment it is switched on, saving significant energy and time compared to constant-heat alternatives. The integrated cutting device is a major productivity booster, allowing users to create custom-sized bags from tubular film and trim excess material in a single motion.

Durability and Design

Constructed with industrial-grade materials, the sealer is built for longevity. The controls are intuitive, featuring independent knobs for sealing and cooling times, which allow for fine-tuning based on the specific thickness of the material being used. For businesses requiring a robust, floor-standing or table-top solution that can handle large-format packaging, the HAWO HPL 1000 AS is a top-tier investment that pays for itself through improved efficiency and reduced waste.

Specifications

• Sealing Length1000 mm (39.4 in)
• Seal Width3 mm (0.12 in)
• Film WidthMax. 1000 mm
• Sealing TechnologyImpulse Sealing with Magnetic Actuation
• Cutting DeviceIntegrated (Safety Blade)
• Power Consumption750 VA
• Mains Connection230 V, 50/60 Hz
• Weight18.0 kg (approx.)
• Dimensions1200 x 300 x 210 mm
• Material CompatibilityPE, PP, PVC, and thin laminates

Practical How-To Guides

How to Operate and Maintain Your HAWO HPL 1000 AS Sealer

Follow these guides to ensure optimal performance and extend the lifespan of your impulse sealer.

Setting Up for First Use

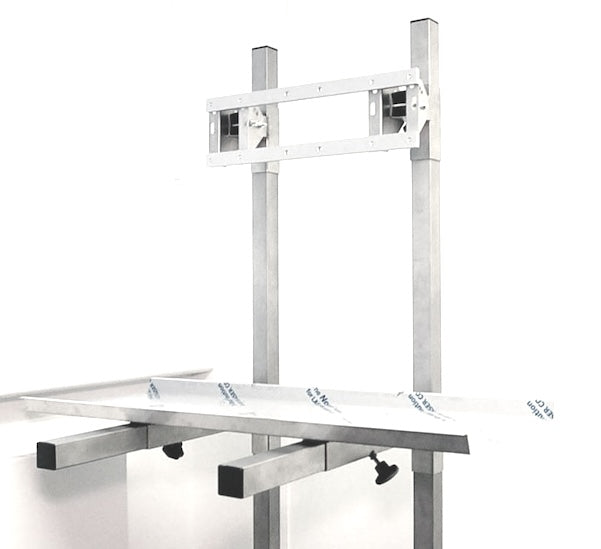

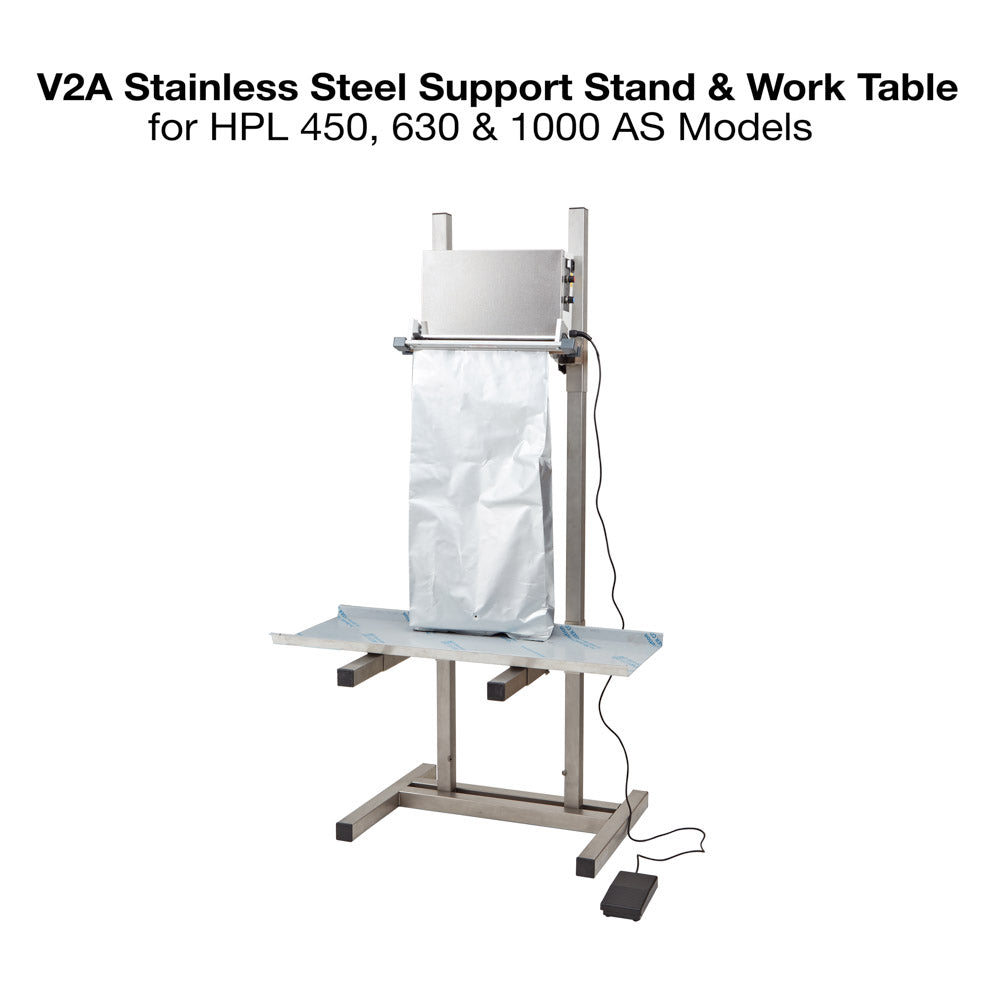

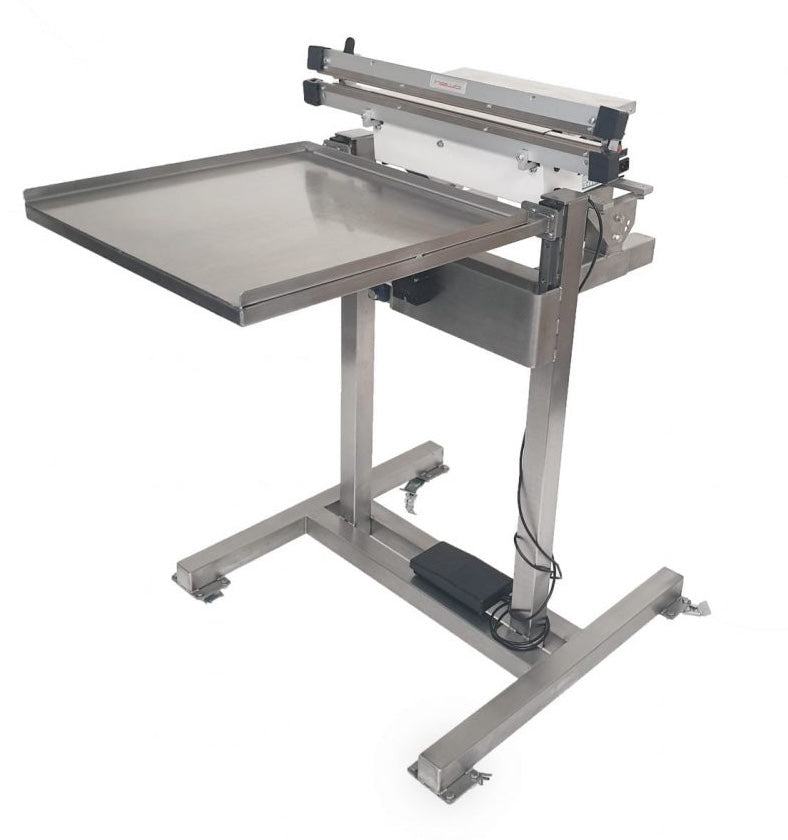

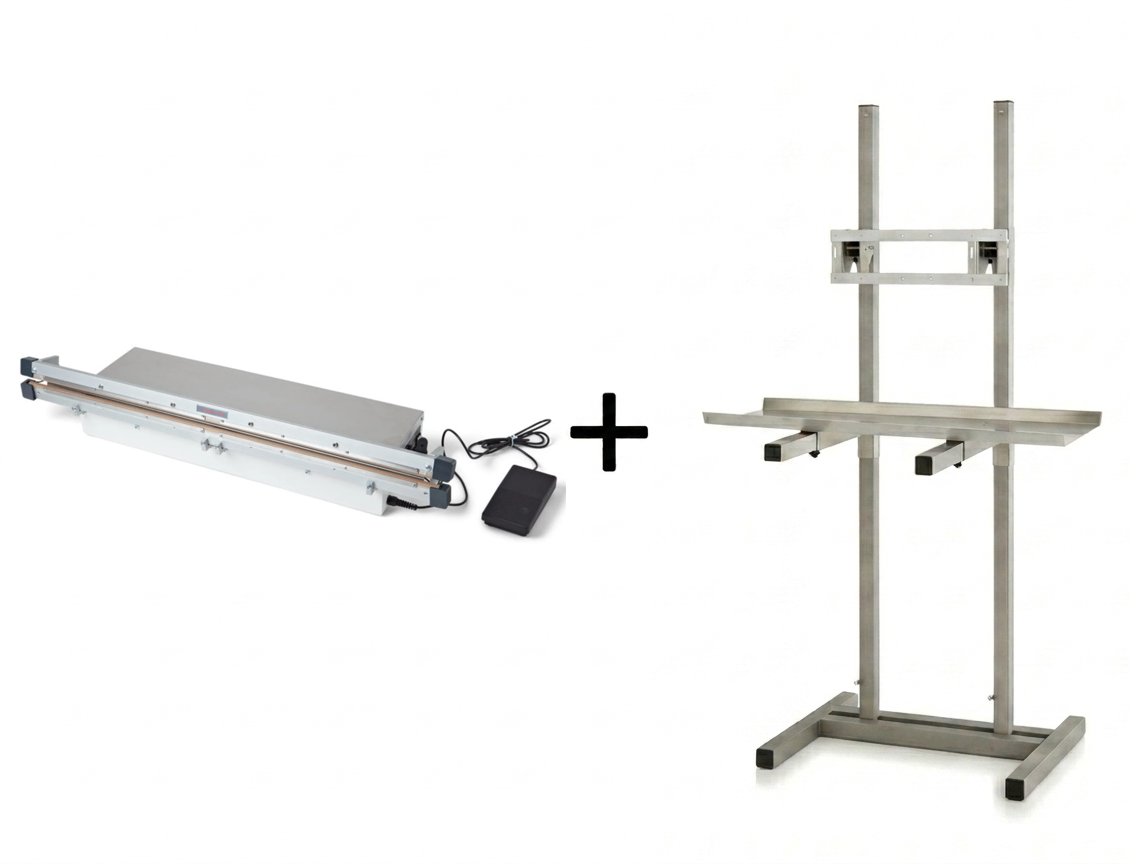

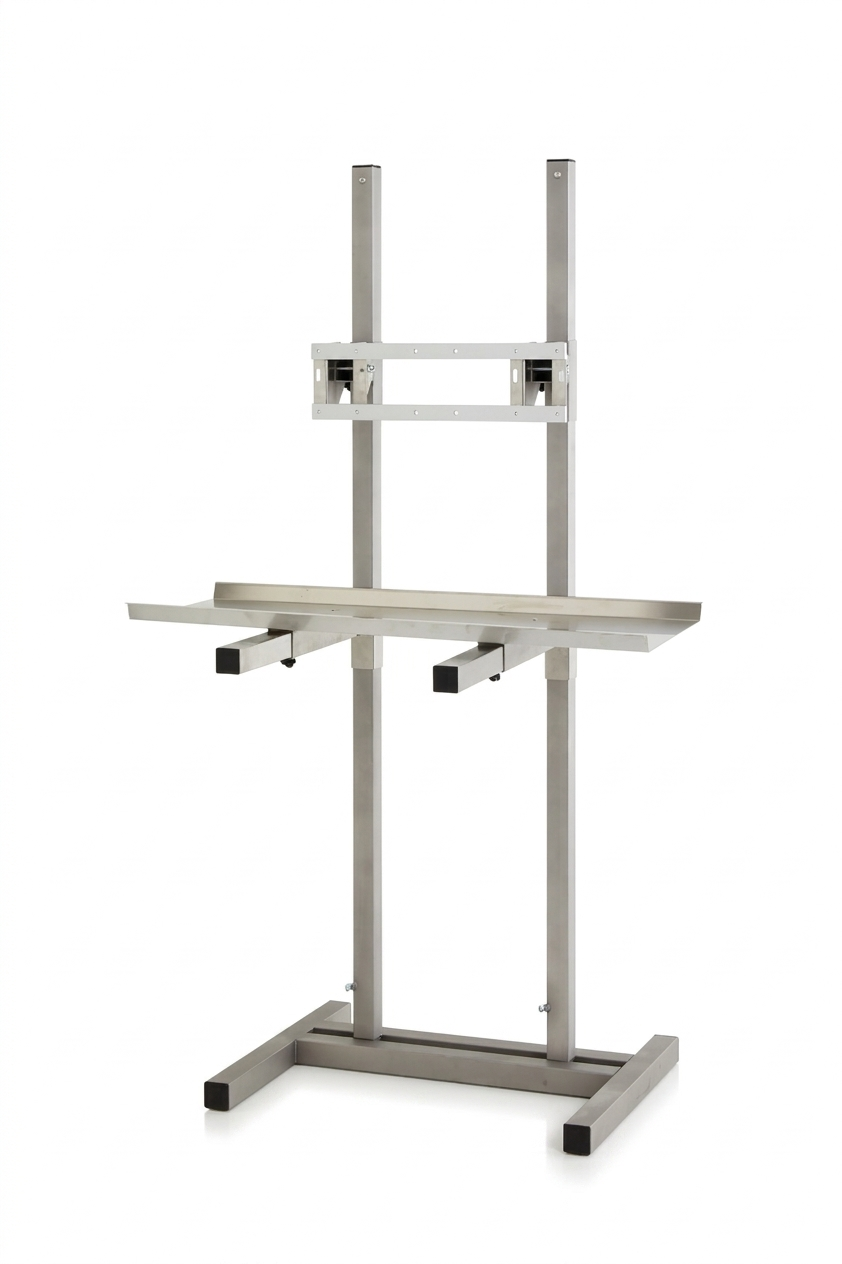

• Place the sealer on a flat, stable work surface or the optional HAWO stand.
• Connect the device to a grounded 230V power outlet.
• Adjust the Sealing Time knob based on your material thickness. Start with a lower setting and increase until a firm, clear seal is achieved.
• Adjust the Cooling Time knob; the magnetic lock will release only after this cycle completes to ensure the seal has set.

The Sealing Process

1. Position the film over the sealing wire and under the pressure bar.
2. Push the sealing arm down until the magnet engages.
3. Once the magnet releases automatically, slide the cutting device across the film if trimming is required.
4. Lift the arm and remove the sealed package.

Routine Maintenance

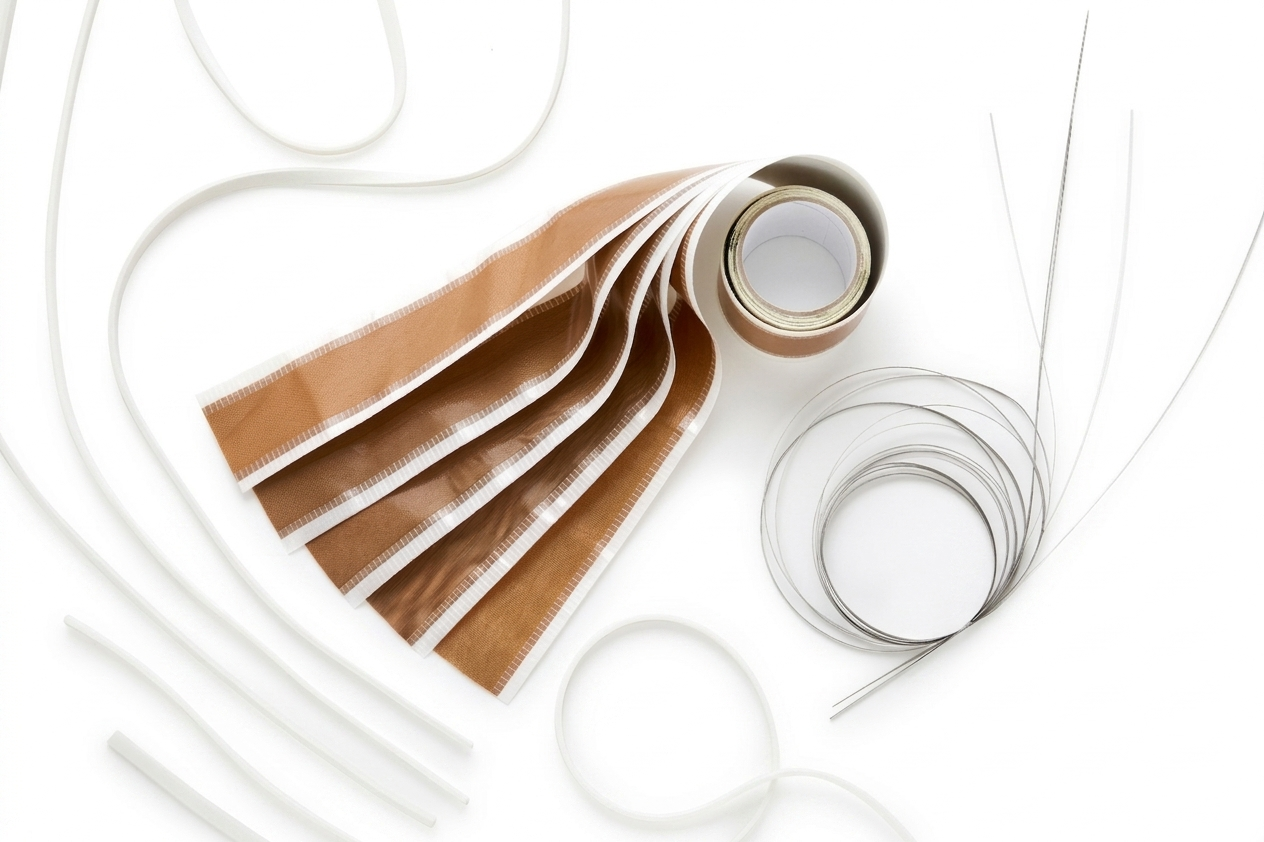

• Teflon Tape Replacement: Regularly inspect the upper and lower Teflon strips. If they appear burnt or worn, replace them immediately to prevent the film from sticking or damaging the heating element.
• Blade Safety: If the cutting action becomes jagged, replace the safety blade by unscrewing the cutter housing.
• Cleaning: Wipe down the exterior with a dry cloth. Do not use abrasive cleaners on the sealing area.
