Hawo HM 460 AS-V Validatable Impulse Sealer | Foot Operated Heat Sealing of Pouches & Reels In Accordance with EN ISO 11607-2: 2019 | Standalone Machine + Optional Accessories

Name: Hawo HM 460 AS-V Validatable Impulse Sealer | Foot Operated Heat Sealing of Pouches & Reels In Accordance with EN ISO 11607-2: 2019 | Standalone Machine + Optional Accessories
Brand: Hawo
SKU: VALSKU460ASV
Availability: OutOfStock

Hawo HM 460 AS-V Validatable Impulse Sealer | Foot Operated Heat Sealing of Pouches & Reels In Accordance with EN ISO 11607-2: 2019 | Standalone Machine + Optional Accessories

£0.00 GBP

~~£0.00 GBP~~ £0.00 GBP

Offer Contact us for a quote

Contact for more information

Introduction

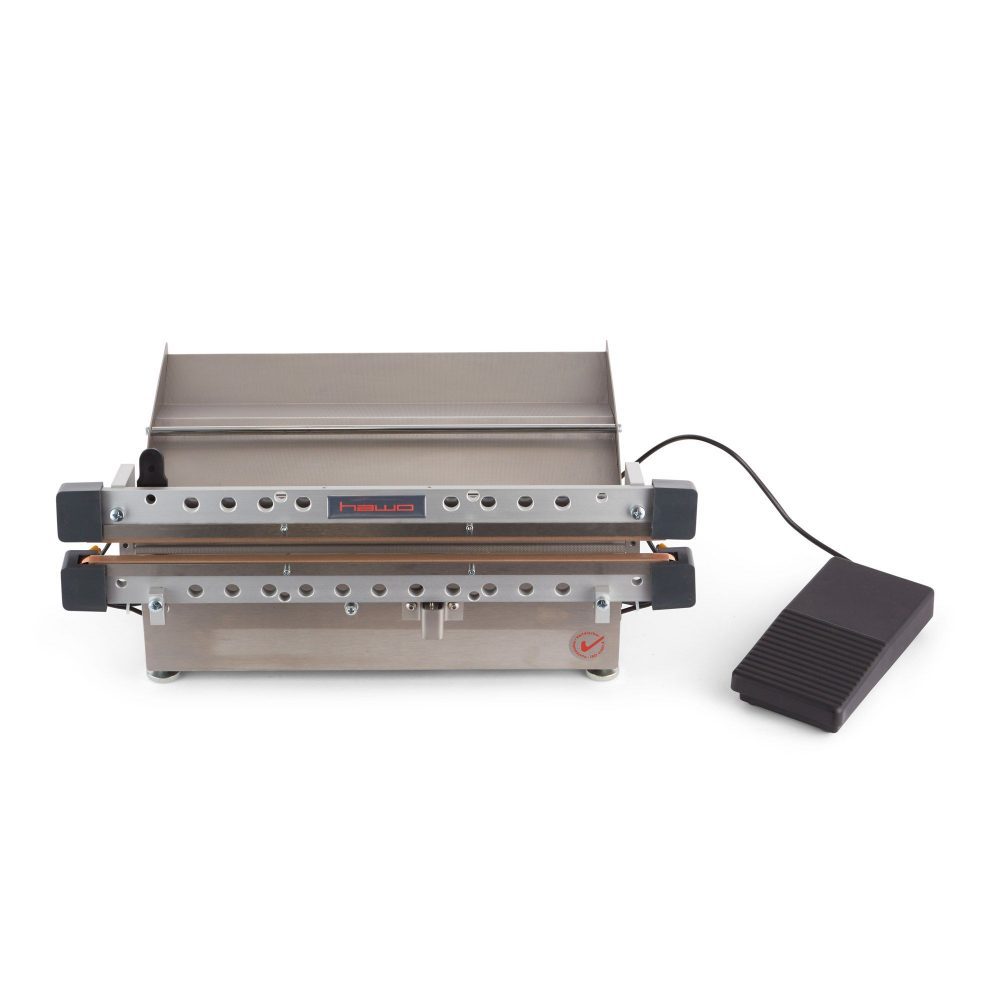

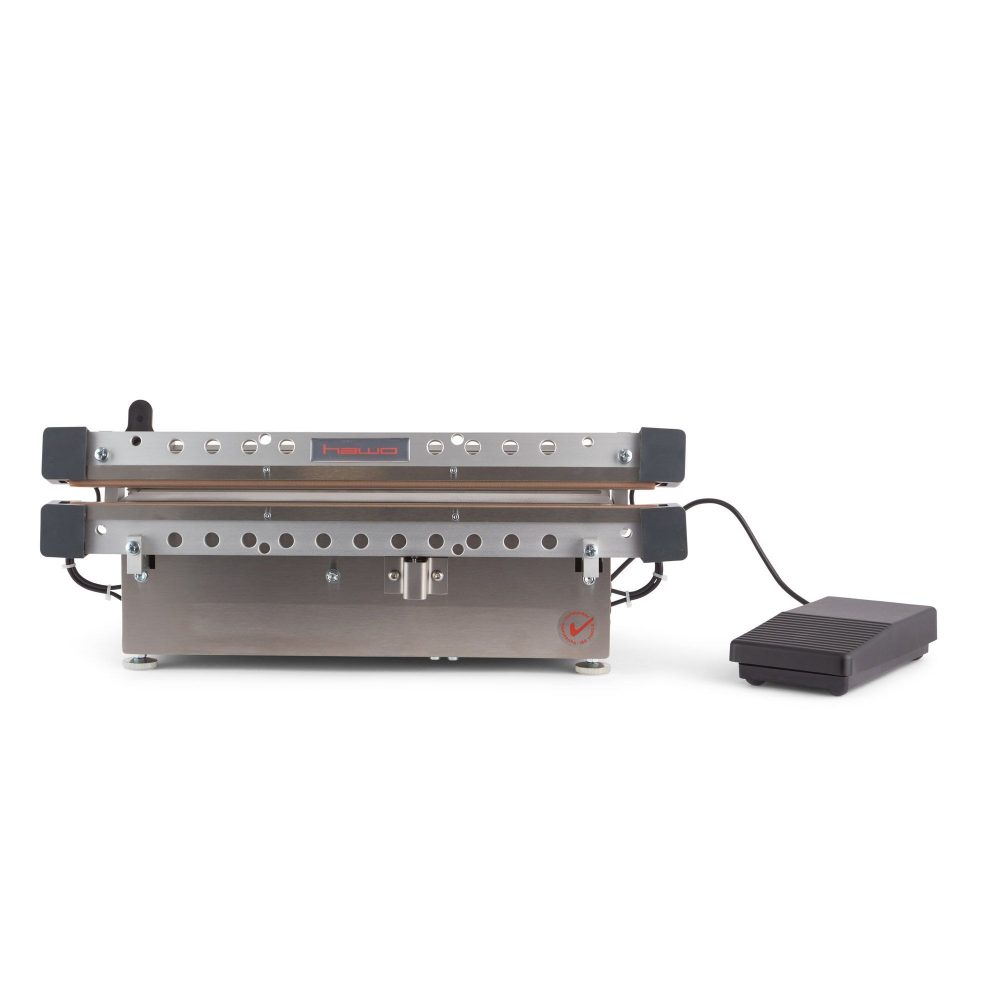

The Hawo HM 460 AS-V Validatable Impulse Sealer represent a benchmark in medical-grade packaging technology, specifically engineered to meet the rigorous safety requirements of the healthcare, pharmaceutical, and laboratory industries. As a validatable impulse sealer, this device ensures that every sealing process is repeatable and documented, providing the high level of security necessary for sterile barrier systems.

Designed for professionals who demand precision, the HM 460 AS-V integrates advanced microprocessor control with user-friendly operation. By adhering to international standards such as DIN EN ISO 11607-2, this sealer provides a reliable solution for sealing pouches and reels, ensuring that the integrity of medical devices is never compromised during the packaging phase.

Professional Excellence: A Review of the Hawo HM 460 AS-V

In an environment where sterility is paramount, the Hawo HM 460 AS-V Validatable Impulse Sealers stand out for their uncompromising commitment to process control. The 'AS-V' designation signifies its status as a validatable system, meaning it doesn't just seal—it monitors and records the critical parameters of temperature, sealing time, and contact pressure. If any variable falls outside the predefined window, the machine alerts the operator, preventing faulty seals from reaching the clinical floor.

Innovative Interface and Control

One of the standout features of the HM 460 AS-V is the AppCtrl touch screen interface. Utilizing a Linux-based operating system, the interface feels intuitive, allowing for rapid configuration and monitoring. The inclusion of Hawo IntelligentScan further streamlines the workflow; by using a barcode scanner, operators can instantly load predefined sealing parameters for different materials, virtually eliminating manual entry errors.

Design and Efficiency

The impulse sealing technology used in this model is not only highly precise but also energy-efficient. Unlike constant-heat sealers, the HM 460 AS-V only draws significant power during the actual sealing cycle. The 450mm seal length is ideal for a wide range of medical pouches, and the 8mm seal width provides a robust, professional-grade closure that meets the requirements for sterile barrier integrity. With its sleek stainless steel housing, the device is easy to clean and fits perfectly into a cleanroom environment.

Specifications

Sealing Length450 mm (17.7 in.)
Sealing Width8 mm (0.3 in.)
Process ValidationIn accordance with DIN EN ISO 11607-2 / ISO/TS 16775
Max. Temperature200 °C
Sealing TechnologyImpulse Sealing
Communication InterfacesUSB, RS 232, Ethernet (optional)
Control SystemMicroprocessor with AppCtrl touchscreen
Material CompatibilitySealable pouches and reels (e.g., Paper/Plastic, Tyvek/Plastic)
HousingAISI 304 Stainless Steel
Special FeaturesHawo IntelligentScan, SealCheck function, DocuLink integration

FAQs

Why Is Validation Important For The Hawo HM 460 AS-V?

Validation is critical in medical packaging to ensure that the sealing process is consistently capable of producing a seal that maintains a sterile barrier. The Hawo HM 460 AS-V monitors temperature, time, and pressure as required by DIN EN ISO 11607-2, ensuring that any deviation triggers an alarm to maintain safety and compliance.

What Materials Are Compatible With This Sealer?

The HM 460 AS-V is highly versatile and can process a wide range of sealable materials, including standard paper/plastic pouches and reels, as well as high-performance materials like Tyvek®/plastic and gusseted pouches.

How Does The IntelligentScan Feature Function?

The IntelligentScan feature allows users to program and store different sealing configurations that can be activated instantly via a barcode scanner. This simplifies the setup process for different pouch types and significantly reduces the risk of human error during parameter entry.

How Is Sealing Data Recorded For Quality Management?

The device features integrated USB and RS 232 ports for easy data export. It is also compatible with Hawo's DocuLink software, which allows for the seamless recording and archiving of all process data on a PC, ensuring full traceability for every batch processed.
